Siemens Building Technology ASK71.11 Mount Kit

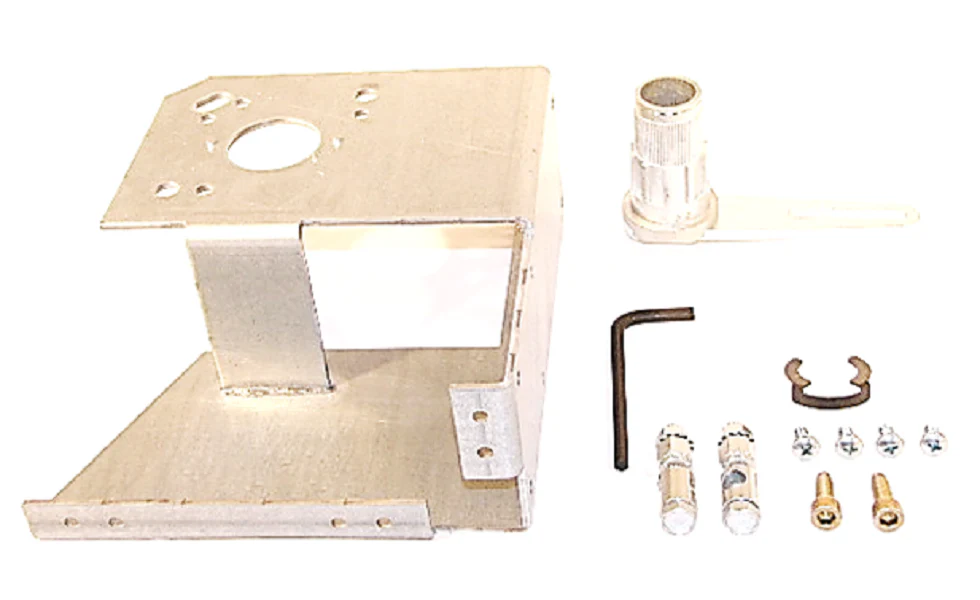

The Siemens ASK71.11 Duct & Frame Mount Kit is a heavy-duty solution for technicians installing OpenAir GEB and GMA Series actuators in demanding air handling environments. This combined foot and frame mount kit is engineered for direct mounting to the damper frame, providing the structural stability required for high-torque applications. By utilizing the included rotary to linear crank arm, installers can efficiently generate a linear stroke for precise control over damper linkages, even in tight mechanical spaces where direct shaft coupling isn't an option.
Built for long-term field reliability, the Siemens ASK71.11 features a specialized Teflon support-bearing ring designed to minimize side-loading on the actuator's output bearing. This critical design detail reduces mechanical wear and prevents premature failure of the motor assembly. This mounting kit provides high-performance versatility for HVAC damper control systems, ensuring a secure, professional installation that meets Siemens Building Technology standards for damper actuator accessories.
Key Benefits- Universal Compatibility: Optimized for use with Siemens OpenAir GEB and GMA actuators, including both spring-return and non-spring return models.
- Enhanced Mechanical Protection: The integrated Teflon bearing ring absorbs lateral forces, protecting the actuator internal gear train from side-load stress.
- Flexible Installation: Designed as a duct & frame mount kit, allowing for versatile positioning in both new builds and HVAC retrofit projects.
- Linear Conversion: Includes a replacement crank arm to facilitate linear movement from rotary motors, expanding control possibilities for various damper styles.
Is the damper push rod included in the ASK71.11 kit?
No, the push rod is typically sourced separately based on the specific throw distance and diameter required for your damper linkage setup.
Can I use this kit with GCA or GIB series actuators?
While various Siemens kits look similar, the ASK71.11 is specifically machined for the GEB and GMA footprints. For larger GCA or GIB units, you should verify the specific bracket dimensions as those series generally require different mounting kits like the ASK71.2U.
What is the primary function of the bearing ring?
The bearing ring supports the shaft during its rotation to ensure that the force is strictly used for operation rather than putting diagonal pressure on the motor's bushings, extending the operational life of the equipment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
