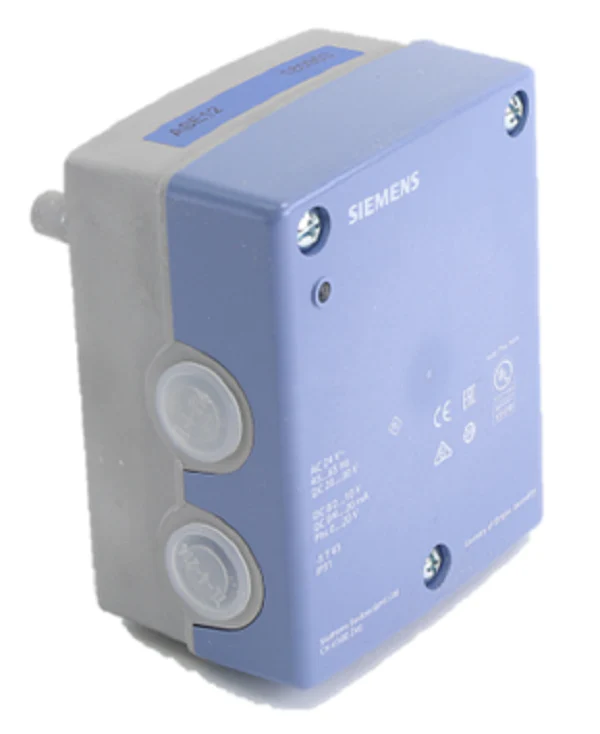

Siemens Building Technology ASE12 Circuit Board
The Siemens Building Technology ASE12 Circuit Board is a specialized replacement electronic module engineered specifically for the MXG461B.., MVF461H.., and MXG462S.. series of electromagnetic modulating control valves. As a veteran technician knows, these magnetic actuators rely on high-speed signal processing to maintain precise positioning. This HVAC control board converts the positioning signal (0/2 to 10 Vdc or 0/4 to 20 mA) into a phase-cut power signal, generating the exact magnetic field required for rapid armature response. Built for high-performance building automation, the Siemens ASE12 features a robust IP31-rated design and supports 24 VAC or 20-30 VDC operation. Its modular architecture ensures seamless integration with Siemens building management systems, providing the reliability needed for critical HVAC, lighting, and energy management applications. When replacing field components, this direct OEM replacement board is the standard for restoring factory-spec proportionality between the positioning signal and valve stroke.
Key Benefits:- Precise Actuator Control: Direct replacement for MXG461B and MVF461H valves, ensuring accurate phase-cut signal conversion.
- Rapid Response: Superior circuitry allows the armature to respond instantly to load changes for tight temperature control.
- Versatile Power Options: Specifically designed to handle 24 VAC or 20-30 VDC inputs to match existing field wiring.
- Built-in Diagnostics: On-board LED indicators allow for immediate status verification and faster troubleshooting during commissioning.
- Easy Calibration: Includes dedicated contacts for full-stroke calibration to store end positions accurately.
- Which actuators are compatible with the ASE12? This board is the designated replacement electronic for Siemens MXG461B, MXG462S, and MVF461H electromagnetic valves.
- Does this board support 4-wire connections? Yes, a 4-wire connection is recommended to achieve optimum control performance and stable position feedback.
- How do I calibrate the valve after installation? Bridge the calibration contacts behind the slot on the circuit board using a screwdriver; the valve will travel the full stroke to store its end positions automatically.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
