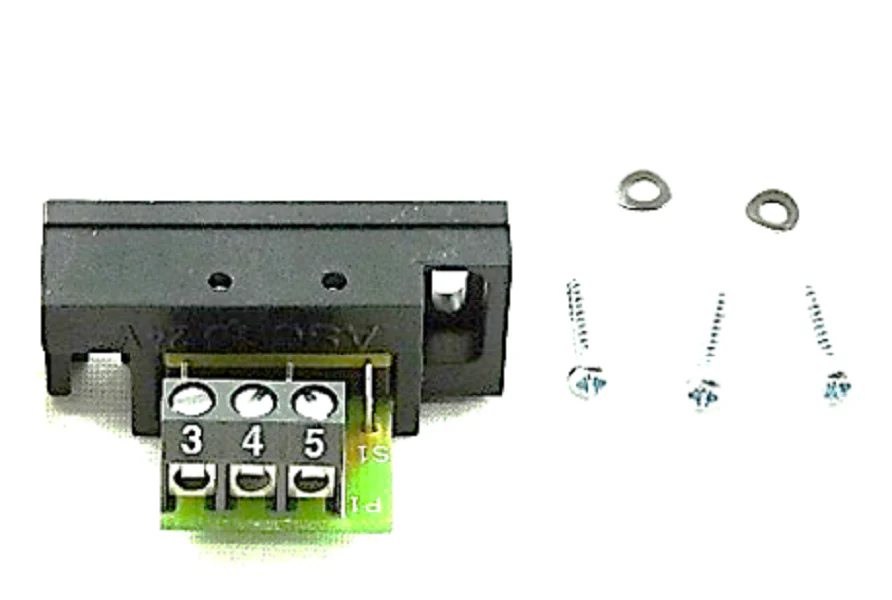

Siemens Building Technology ASC1.6 Switch
The Siemens Building Technology ASC1.6 is a professional-grade auxiliary switch kit engineered for precise end-stop monitoring in HVAC systems. Designed specifically for field installation on Siemens electrohydraulic actuators, including the SKD, SKB, and SKC series, this component provides critical feedback by signaling when a valve reaches the 0% stroke position. This position indicator switch features a fixed switching point, ensuring repeatable accuracy for HVAC valve control and system sequencing without the need for manual calibration of the trip point.
For contractors managing building automation systems, the Siemens ASC1.6 offers a robust switching capacity of 24 Vac at 4A resistive or 2A inductive loads, making it compatible with a wide range of controller inputs. The unit is optimized for low-current applications, with a recommended minimum current of 10 mA to maintain contact integrity over time. Integrating this actuator accessory allows for verifiable proof of closure, which is essential for protecting equipment in feedwater control and steam applications. Its "plug-and-play" architecture into the SKD/SKB housing ensures a clean install during routine maintenance or system upgrades.
Key Benefits for Technicians- Direct Compatibility: Engineered for seamless integration with SKB62, SKC62, and SKD62 series actuators.
- Fixed Zero-Point Signaling: Eliminates field adjustment errors by providing a reliable signal at exactly 0% stroke.
- Durable Construction: Built to withstand the high-cycle demands of industrial electrohydraulic valve actuators.
- Electrical Versatility: Handles both resistive and inductive 24V loads, providing flexibility for different signaling requirements.
Can the switching point of the ASC1.6 be adjusted in the field?
No, the Siemens ASC1.6 features a fixed switching point at the 0% stroke position. If you require an adjustable auxiliary switch, please consult the technical data for the ASC10.1 series.
Is this switch compatible with older SKD actuators?
Yes, this unit is the standard position indicator for current and legacy SKD, SKB, and SKC electrohydraulic actuator bodies used in global Siemens building technology applications.
What is the maximum electrical load for this auxiliary switch?
The switch is rated for 24 Vac with a maximum 4A resistive or 2A inductive load, suitable for most PLC and BAS digital inputs.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $85.56
-65%$85.56
$29.95Siemens Building Technology ASC1.6 Switch
