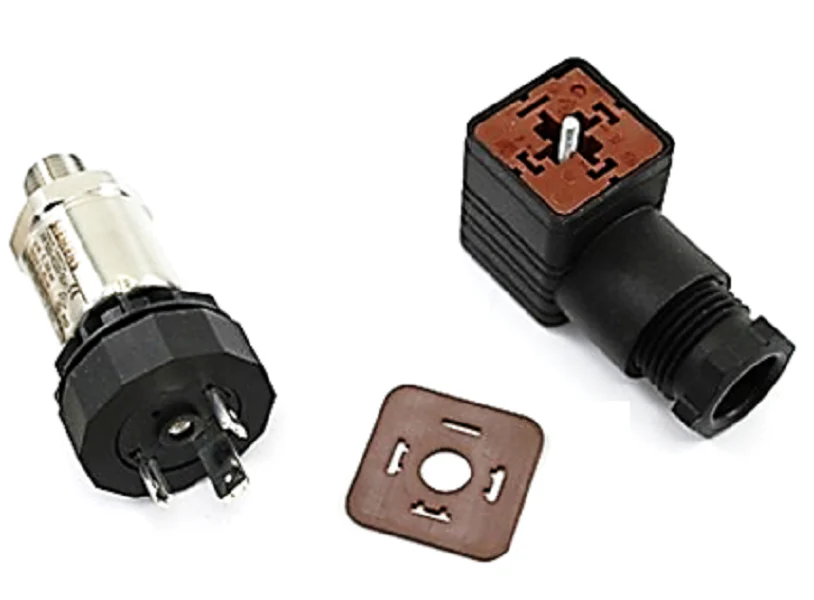

Siemens Building Technology 7MF15654CD005EA1 Sensor
The Siemens SITRANS P200 7MF1565-4CD00-5EA1 is a high-performance liquid pressure sensor designed for demanding HVACR and industrial hydraulic applications. This 0-300 PSIG pressure transmitter features a piezoresistive ceramic measuring cell with a thin-film strain gauge, ensuring exceptional long-term stability and high overload resistance. Engineered for gauge pressure measurement, it converts mechanical pressure into a precise 4-20mA output signal, maintaining a typical linearity of 0.25% across the full scale. The rugged stainless steel NEMA 4 housing and Viton (FPM) sealing make it compatible with both aggressive and non-aggressive media, including liquids, gases, and vapors. With a 1/4" NPT process connection and a standard terminal block electrical interface, this compact sensor is a reliable solution for static and dynamic pressure monitoring where accuracy and durability are critical for system control.
Key Benefits for Contractors- Precision Engineering: High measurement accuracy with a 0.25% typical characteristic curve deviation for reliable system feedback.
- Industrial Durability: Robust stainless steel housing and temperature-compensated ceramic diaphragm withstand intensive load changes.
- Media Versatility: Suitable for a wide range of media, including water, refrigerants, and non-corrosive gases.
- Compact Integration: Space-saving design allows for easy installation in tight manifold configurations or mechanical rooms.
- Stable Performance: Piezo-resistive technology eliminates mechanical aging and creepage, reducing the need for frequent recalibration.
What is the thread size for the process connection?
This model utilizes a standard 1/4" MNPT (Male National Pipe Thread) connection for straightforward integration into most US hydraulic and pneumatic systems.
Does this sensor require a separate power supply?
Yes, as a 4-20mA two-wire transmitter, it typically operates on a DC loop power supply, generally ranging from 7 to 33 V DC, depending on your controller's requirements.
Can this be used for steam applications?
While the SITRANS P200 is rated for vapors, ensure the medium temperature at the sensor head does not exceed the maximum rating of 185°F (85°C). For high-temperature steam, use a pigtail syphon to protect the ceramic element.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
