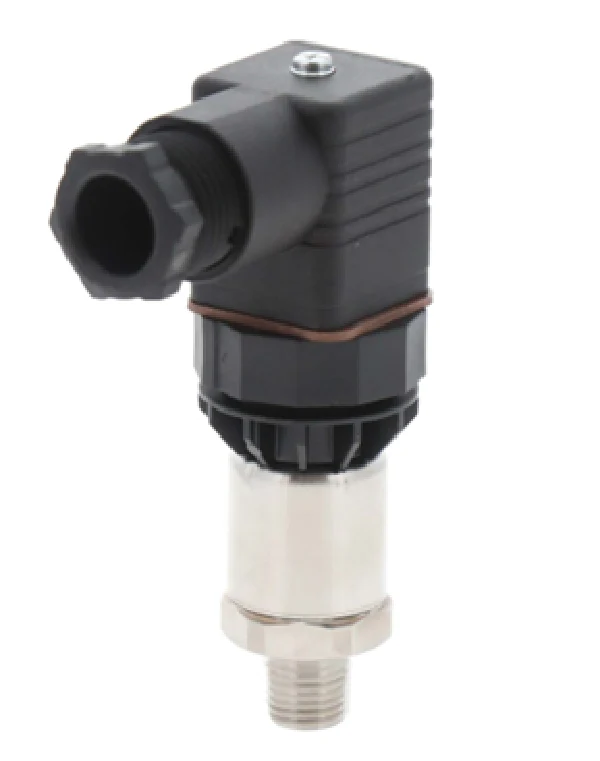

Siemens Building Technology 7MF15654CB005EA1 Pressure Sensor
The Siemens SITRANS P200 7MF1565-4CB00-5EA1 is a high-precision liquid pressure sensor engineered for demanding HVAC and industrial process applications. Built with a rugged stainless steel housing and a piezo-resistive ceramic measuring cell, this transmitter delivers a reliable 4-20mA output signal proportional to a 0-200 PSIG gauge pressure range. Its linear measurement accuracy of 0.25% ensures exacting control in hydraulic and pneumatic systems, while the temperature-compensated measuring cell maintains stability across fluctuating medium temperatures from -13 to 185 ºF. Designed for technicians who prioritize durability, the terminal block connection and 1/4" MNPT process connection facilitate a secure, low-maintenance installation in environments where no local display is required. This industrial pressure transmitter is suitable for both aggressive and non-aggressive media, making it a versatile staple for mechanical engineering and water supply infrastructure.
Key Benefits- Excellent EMC characteristics ensure signal integrity even in high-interference mechanical rooms.
- The piezo-resistive ceramic diaphragm provides high overload resistance and prevents mechanical aging or creepage over time.
- Compact NEMA 4 housing allows for installation in tight spaces while protecting internal fully encapsulated electronics from humidity.
- Linear 4-20mA analog output integrates seamlessly with standard building automation systems (BAS) and PLC controllers.
- Capable of monitoring static and dynamic overpressures in steam, liquid, and gaseous systems with intensive load changes.
What media is this sensor compatible with?
The Siemens 7MF15654CB005EA1 is designed for liquids, gases, and vapors. The wetted parts feature a ceramic element and stainless steel, making it compatible with both aggressive and non-aggressive media used in HVAC facilities.
How do I wire this pressure transmitter?
This model utilizes a terminal block connection within the internal housing, typically requiring a 2-wire 4-20mA current loop interface. Always refer to the specific SITRANS P200 technical specifications for PIN bridge configurations and terminal assignments.
Can this sensor be used in steam applications?
Yes, as part of the Siemens Building Technology 7MF series, this unit is suitable for positive pressure measurement in steam systems, provided the medium temperature remains within the specified -25 to 84 °C range at the sensing point.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
