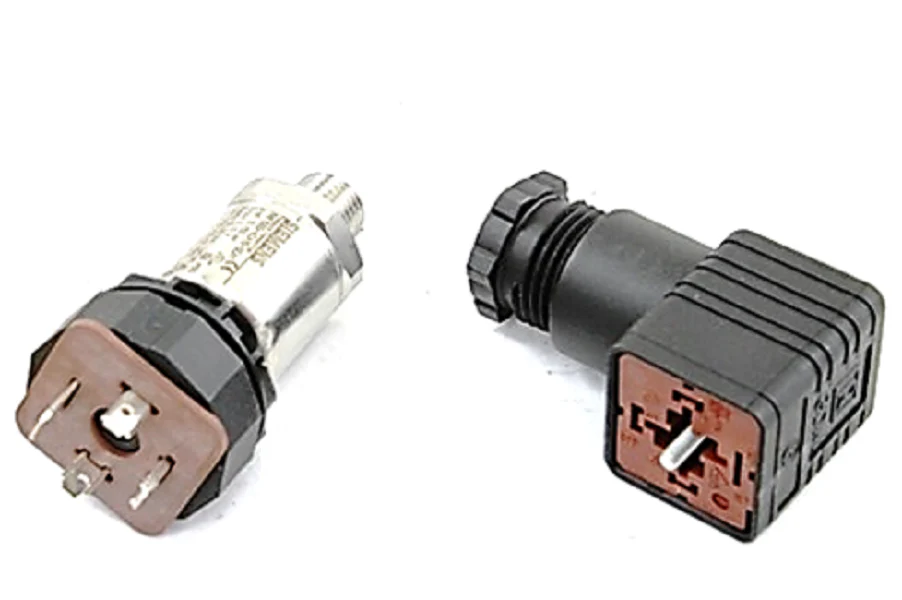

Siemens Building Technology 7MF15654CA105EA1 Sensor
The Siemens Building Technology 7MF15654CA105EA1 is a high-performance SITRANS P200 pressure transmitter designed for precision monitoring in demanding HVACR and industrial fluid systems. Operating with a 0-10Vdc output signal, this sensor provides a linear voltage response across its 0-150 PSIG measuring range, making it ideal for integration with standard Building Automation Systems (BAS) and PLC controllers. This unit features a robust piezo-resistive measuring system with a ceramic diaphragm, ensuring stable readings even when exposed to aggressive media or dynamic pressure changes. The stainless steel housing provides enhanced protection against environmental stressors, while the terminal block connection allows for secure, direct field wiring without the need for specialized plugs.
Key Benefits for Technicians:
- High Measurement Accuracy: Typically 0.25% of full scale for precise process control in liquid and gas applications.
- Media Versatility: Suitable for both aggressive and non-aggressive media, including water, refrigerants, and non-corrosive gases.
- Temperature Stability: Fully encapsulated electronics and a temperature-compensated measuring cell minimize drift in variable ambient conditions.
- Industrial-Grade Build: Rugged 1.4305 stainless steel enclosure with an IP65 protection rating for long-term reliability in mechanical rooms.
- Static and Dynamic Support: Engineered to handle intensive load changes and overpressure spikes without mechanical fatigue.
Common Questions:
How do I wire this sensor to my controller?
This model uses a terminal block for field wiring. For a 0-10Vdc output signal, ensure you have a stable power supply (typically 15-30 VDC) and connect the positive, common, and signal leads according to the Siemens wiring schematic located under the terminal box lid.
Can this sensor be used with steam or high-temperate liquids?
The 7MF15654CA105EA1 is rated for medium temperatures ranging from -13 °F to 185 °F (-25 °C to 84 °C). For applications exceeding these limits, such as steam, a siphon or cooling element should be used to protect the ceramic sensing element.
What should I check if I am getting a zero-voltage output?
First, verify 24Vdc excitation voltage at the terminal block. If power is present, check for physical blockages in the 1/4 inch MNPT process connection or lead breaks in the signal wire. A reading of exactly 0V at zero pressure is normal for this linear scale.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
