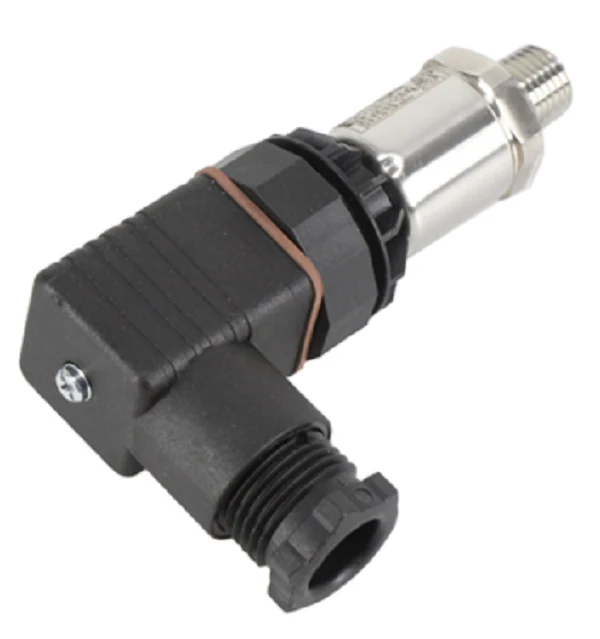

Siemens Building Technology 7MF15654CA005EA1 Sensor
The Siemens 7MF15654CA005EA1 is a high-precision SITRANS P200 pressure transmitter engineered for demanding liquid and gas monitoring in industrial and HVAC applications. This single point wet pressure sensor features a robust piezoresistive measuring cell paired with a durable ceramic diaphragm, providing excellent resistance to both aggressive and non-aggressive media. With a 0-150 PSIG measuring range and a standard 4-20mA output signal, it integrates seamlessly into building automation systems and process control loops. The 1/4 inch MNPT process connection and terminal block electrical interface ensure a secure, leak-proof mechanical fit and simplified wiring for field contractors. Designed without a display to maintain a compact footprint, the unit leverages temperature-compensated electronics to maintain a typical accuracy of 0.25% of full scale, even in environments with fluctuating medium temperatures ranging from -13 to 185 ºF. For technicians requiring a reliable analog pressure transducer, this stainless steel gauge pressure sensor offers the industrial-grade stability needed for consistent system feedback.
Key Benefits- High Measurement Accuracy: Maintains a 0.25% typical linear range accuracy for precise control of liquid pressure sensor data.
- Corrosion Resistance: Built with a sturdy stainless steel housing and a ceramic sensing element to withstand harsh fluids and vapors.
- Industrial Durability: Features high overload withstand capability (up to 350 psi) to protect against unexpected system pressure spikes.
- Versatile Media Compatibility: Suitable for measuring gauge pressure in liquids, gases, and steam across various mechanical engineering sectors.
- Simplified Integration: The 4-20mA two-wire connection and standard 1/4" NPT threading allow for rapid replacement in existing control panels.
What media can the Siemens 7MF15654CA005EA1 handle?
This pressure transmitter is designed for both aggressive and non-aggressive liquids, gases, and vapors, thanks to its high-quality ceramic and stainless steel wetted parts.
How does the 4-20mA signal behave with the 0-150 PSIG range?
The output signal is linearly proportional to the input pressure. A 4mA signal indicates 0 PSIG, while a 20mA signal represents the full scale of 150 PSIG.
Is this sensor suitable for high-temperature HVAC applications?
Yes, the 7MF15654CA005EA1 is temperature-compensated and rated for medium temperatures between -25 and 84 °C (-13 to 185 ºF).
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $302.48
-65%$302.48
$105.87Siemens Building Technology 7MF15654CA005EA1 Sensor
The Siemens 7MF15654CA005EA1 is a high-precision SITRANS P200 pressure transmitter engineered for demanding liquid and gas monitoring in industrial and HVAC applications. This single point wet pressure sensor features a robust piezoresistive measuring cell paired with a durable ceramic diaphragm, providing excellent resistance to both aggressive and non-aggressive media. With a 0-150 PSIG measuring range and a standard 4-20mA output signal, it integrates seamlessly into building automation systems and process control loops. The 1/4 inch MNPT process connection and terminal block electrical interface ensure a secure, leak-proof mechanical fit and simplified wiring for field contractors. Designed without a display to maintain a compact footprint, the unit leverages temperature-compensated electronics to maintain a typical accuracy of 0.25% of full scale, even in environments with fluctuating medium temperatures ranging from -13 to 185 ºF. For technicians requiring a reliable analog pressure transducer, this stainless steel gauge pressure sensor offers the industrial-grade stability needed for consistent system feedback.
Key Benefits- High Measurement Accuracy: Maintains a 0.25% typical linear range accuracy for precise control of liquid pressure sensor data.
- Corrosion Resistance: Built with a sturdy stainless steel housing and a ceramic sensing element to withstand harsh fluids and vapors.
- Industrial Durability: Features high overload withstand capability (up to 350 psi) to protect against unexpected system pressure spikes.
- Versatile Media Compatibility: Suitable for measuring gauge pressure in liquids, gases, and steam across various mechanical engineering sectors.
- Simplified Integration: The 4-20mA two-wire connection and standard 1/4" NPT threading allow for rapid replacement in existing control panels.
What media can the Siemens 7MF15654CA005EA1 handle?
This pressure transmitter is designed for both aggressive and non-aggressive liquids, gases, and vapors, thanks to its high-quality ceramic and stainless steel wetted parts.
How does the 4-20mA signal behave with the 0-150 PSIG range?
The output signal is linearly proportional to the input pressure. A 4mA signal indicates 0 PSIG, while a 20mA signal represents the full scale of 150 PSIG.
Is this sensor suitable for high-temperature HVAC applications?
Yes, the 7MF15654CA005EA1 is temperature-compensated and rated for medium temperatures between -25 and 84 °C (-13 to 185 ºF).
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Siemens 7MF15654CA005EA1 is a high-precision SITRANS P200 pressure transmitter engineered for demanding liquid and gas monitoring in industrial and HVAC applications. This single point wet pressure sensor features a robust piezoresistive measuring cell paired with a durable ceramic diaphragm, providing excellent resistance to both aggressive and non-aggressive media. With a 0-150 PSIG measuring range and a standard 4-20mA output signal, it integrates seamlessly into building automation systems and process control loops. The 1/4 inch MNPT process connection and terminal block electrical interface ensure a secure, leak-proof mechanical fit and simplified wiring for field contractors. Designed without a display to maintain a compact footprint, the unit leverages temperature-compensated electronics to maintain a typical accuracy of 0.25% of full scale, even in environments with fluctuating medium temperatures ranging from -13 to 185 ºF. For technicians requiring a reliable analog pressure transducer, this stainless steel gauge pressure sensor offers the industrial-grade stability needed for consistent system feedback.
Key Benefits- High Measurement Accuracy: Maintains a 0.25% typical linear range accuracy for precise control of liquid pressure sensor data.
- Corrosion Resistance: Built with a sturdy stainless steel housing and a ceramic sensing element to withstand harsh fluids and vapors.
- Industrial Durability: Features high overload withstand capability (up to 350 psi) to protect against unexpected system pressure spikes.
- Versatile Media Compatibility: Suitable for measuring gauge pressure in liquids, gases, and steam across various mechanical engineering sectors.
- Simplified Integration: The 4-20mA two-wire connection and standard 1/4" NPT threading allow for rapid replacement in existing control panels.
What media can the Siemens 7MF15654CA005EA1 handle?
This pressure transmitter is designed for both aggressive and non-aggressive liquids, gases, and vapors, thanks to its high-quality ceramic and stainless steel wetted parts.
How does the 4-20mA signal behave with the 0-150 PSIG range?
The output signal is linearly proportional to the input pressure. A 4mA signal indicates 0 PSIG, while a 20mA signal represents the full scale of 150 PSIG.
Is this sensor suitable for high-temperature HVAC applications?
Yes, the 7MF15654CA005EA1 is temperature-compensated and rated for medium temperatures between -25 and 84 °C (-13 to 185 ºF).
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
