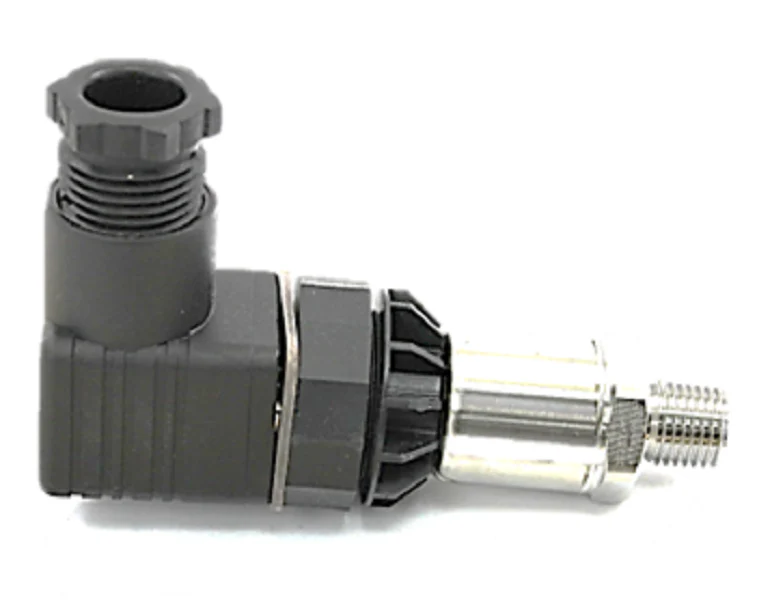

Siemens Building Technology 7MF15654BE005EA1 Sensor
The Siemens Building Technology 7MF15654BE005EA1 Sensor is a high-performance liquid pressure sensor engineered for demanding HVACR and industrial hydraulic applications. This SITRANS P200 pressure transmitter utilizes a piezoresistive measuring system with a ceramic diaphragm and a high-grade stainless steel housing, ensuring stability and long-term reliability without mechanical aging. Designed to measure gauge pressure in both liquids and gases, it delivers a precise 4-20mA output signal over a defined 0-30 PSIG range. The unit features a standard 1/4" MNPT process connection and is built with a terminal block connection type for secure field wiring. With its temperature-compensated measuring cell, this sensor maintains an typical accuracy of 0.25%, making it an ideal HVAC pressure sensor for monitoring static and dynamic overpressures in building automation systems. The compact, robust design is suitable for aggressive media, providing a legacy solution for technicians who require a no display pressure transmitter that performs under intensive load changes and environmental stress.
- High Measurement Accuracy: Maintains a 0.25% typical linear range accuracy for critical system monitoring.
- Industrial Durability: Rugged stainless steel construction protects internal electronics from humidity and temperature fluctuations.
- Versatile Media Compatibility: Capable of measuring pressure for liquids, gases, and steam in HVAC facilities.
- Piezo-Resistive Technology: Prevents creepage and mechanical fatigue, ensuring consistent 4-20mA pressure transmitter performance.
- Compact Form Factor: Designed for tight installations in manifolds or pneumatic control panels.
Common Questions:
How do I wire the Siemens 7MF15654BE005EA1 without a plug?
This specific model utilizes a terminal block connection type rather than an M12 or DIN plug. Field technicians should wire directly to the internal terminals, ensuring the 2-wire 4-20mA loop is correctly powered by a 24VDC nominal supply.
Is this sensor suitable for steam applications?
Yes, the 7MF series is rated for liquids, gases, and vapors. However, ensure the process temperature does not exceed the sensor's maximum operating limit to protect the ceramic measuring cell.
Does this unit require frequent calibration?
The SITRANS P200 is designed to be maintenance-free with no mechanical aging. While it is preset at the factory for the 0-30 PSIG range, regular system-wide checks are recommended to verify loop integrity.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $302.48
-65%$302.48
$105.87Siemens Building Technology 7MF15654BE005EA1 Sensor
The Siemens Building Technology 7MF15654BE005EA1 Sensor is a high-performance liquid pressure sensor engineered for demanding HVACR and industrial hydraulic applications. This SITRANS P200 pressure transmitter utilizes a piezoresistive measuring system with a ceramic diaphragm and a high-grade stainless steel housing, ensuring stability and long-term reliability without mechanical aging. Designed to measure gauge pressure in both liquids and gases, it delivers a precise 4-20mA output signal over a defined 0-30 PSIG range. The unit features a standard 1/4" MNPT process connection and is built with a terminal block connection type for secure field wiring. With its temperature-compensated measuring cell, this sensor maintains an typical accuracy of 0.25%, making it an ideal HVAC pressure sensor for monitoring static and dynamic overpressures in building automation systems. The compact, robust design is suitable for aggressive media, providing a legacy solution for technicians who require a no display pressure transmitter that performs under intensive load changes and environmental stress.
- High Measurement Accuracy: Maintains a 0.25% typical linear range accuracy for critical system monitoring.
- Industrial Durability: Rugged stainless steel construction protects internal electronics from humidity and temperature fluctuations.
- Versatile Media Compatibility: Capable of measuring pressure for liquids, gases, and steam in HVAC facilities.
- Piezo-Resistive Technology: Prevents creepage and mechanical fatigue, ensuring consistent 4-20mA pressure transmitter performance.
- Compact Form Factor: Designed for tight installations in manifolds or pneumatic control panels.
Common Questions:
How do I wire the Siemens 7MF15654BE005EA1 without a plug?
This specific model utilizes a terminal block connection type rather than an M12 or DIN plug. Field technicians should wire directly to the internal terminals, ensuring the 2-wire 4-20mA loop is correctly powered by a 24VDC nominal supply.
Is this sensor suitable for steam applications?
Yes, the 7MF series is rated for liquids, gases, and vapors. However, ensure the process temperature does not exceed the sensor's maximum operating limit to protect the ceramic measuring cell.
Does this unit require frequent calibration?
The SITRANS P200 is designed to be maintenance-free with no mechanical aging. While it is preset at the factory for the 0-30 PSIG range, regular system-wide checks are recommended to verify loop integrity.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
