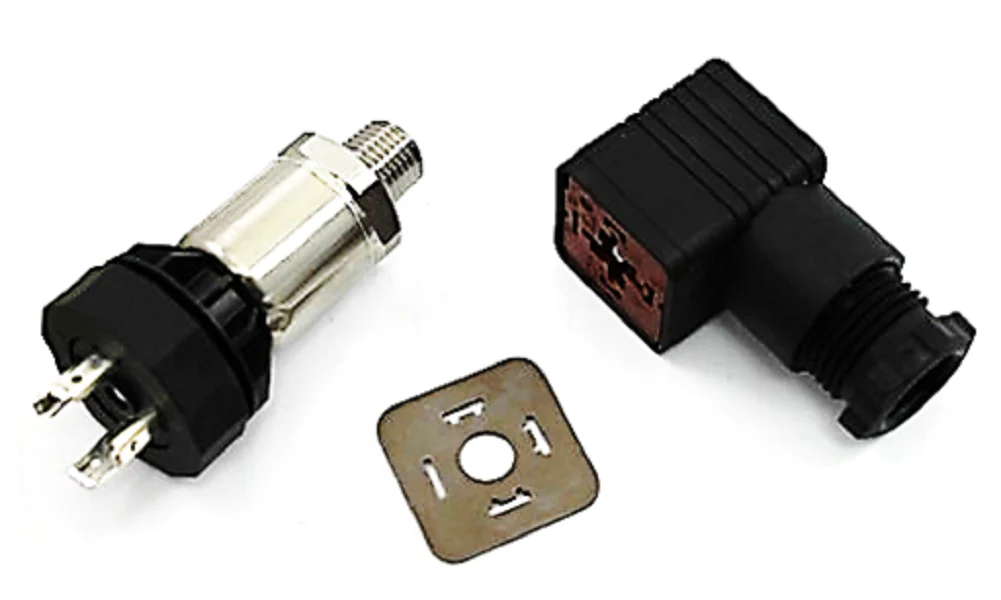

Siemens Building Technology 7MF15654BB105EA1 Sensor
For industrial HVAC and hydronic systems requiring precise monitoring, the Siemens 7MF15654BB105EA1 is a professional-grade liquid pressure sensor designed for high accuracy and long-term stability. This model, part of the SITRANS P200 series, features a 0 to 15 PSIG measuring range and delivers a reliable 0-10Vdc output signal, making it compatible with most building automation systems and PLC controllers. Built with a stainless steel housing and a 1/4 inch MNPT process connection, this industrial pressure transmitter utilizes a piezoresistive ceramic measuring cell that remains unaffected by temperature fluctuations. The terminal block connection ensures a secure electrical termination for field wiring without the need for specialized plugs. Whether you are monitoring chilled water loops or pneumatic lines, this sensor provides a linear response with a typical accuracy of 0.25% full scale, ensuring your HVAC pressure monitoring systems operate at peak efficiency.
Key Benefits:- High Accuracy: Features a 0.25% typical linearity for precise gauge pressure readings in critical HVACR applications.
- Rugged Construction: Encased in a sturdy stainless steel housing with a ceramic diaphragm to withstand aggressive media.
- Optimized Signal: Standard 0-10V analog output allows for seamless integration into Siemens Building Technology and third-party controllers.
- Field-Ready Design: Compact form factor with terminal block connections simplifies installation in tight mechanical rooms.
- Wide Media Compatibility: Suitable for measuring the pressure of aggressive and non-aggressive liquids, gases, and vapors.
What is the maximum pressure this sensor can handle?
The Siemens 7MF15654BB105EA1 has a 0-15 PSIG range with a high overload limit, typically up to 35 psi, protecting the ceramic cell from pressure spikes during system start-up.
Can this be used for steam applications?
Yes, the SITRANS P200 series is designed for liquid, gas, and vapor; however, ensure the medium temperature at the sensorDoes not exceed the rated 185°F (85°C) by using a pigtail syphon if necessary.
Does this sensor require a specific power supply?
This HVAC pressure sensor typically operates on a 24V AC/DC power supply to provide the 0-10Vdc output signal required by your building management system.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
