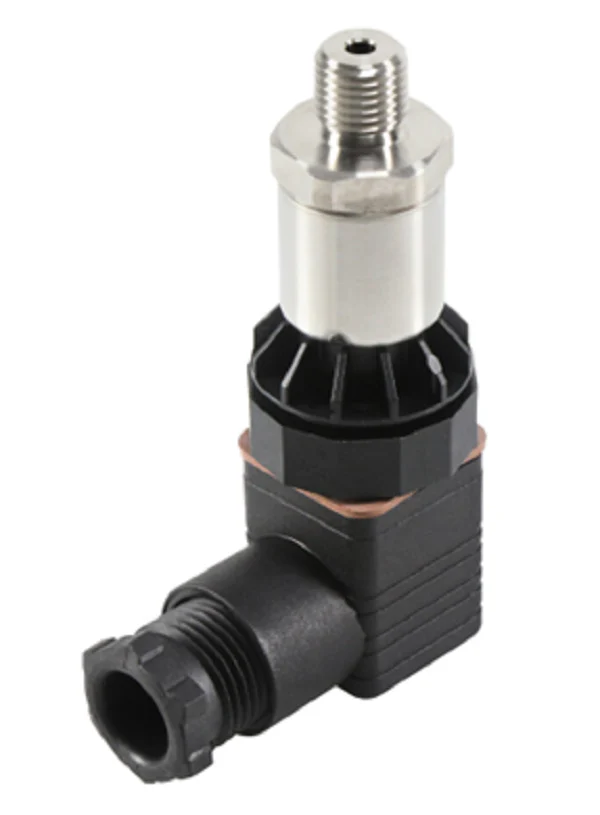

Siemens Building Technology 7MF15654BB005EA1 Sensor
In technical HVACR and industrial hydraulic systems, the Siemens 7MF1565-4BB00-5EA1 Sensor operates as a high-precision SITRANS P200 pressure transmitter. This unit is specifically engineered to monitor gauge pressure in liquids, gases, and vapors within a 0-15 PSIG range. Utilizing a temperature-compensated ceramic measuring cell with a piezoresistive thick-film bridge, it delivers a strictly linear 4-20mA output signal, ensuring high measurement accuracy of 0.25% typical. This makes it a standard choice for contractors requiring reliable liquid pressure monitoring in aggressive or neutral media environments.
The 7MF15654BB005EA1 features a rugged stainless steel housing with a NEMA 4/IP65 rating, protecting the fully encapsulated electronics from humidity and temperature fluctuations. It utilizes a 1/4 inch MNPT process connection and a standard terminal block electrical connection for seamless integration into existing HVACR control loops. Designed without a display, this compact sensor focuses on long-term stability and high overload resistance, often up to 35 psi, making it ideal for industrial pressure sensing where mechanical aging must be minimized and EMC characteristics are critical for system performance.
Key Benefits
- Enhanced Durability: The ceramic element and Viton sealing material provide resistance to a wide range of aggressive media, including steam and chemicals.
- Reliable Signal Integrity: The two-wire 4-20mA current loop allows for long-distance transmission with minimal signal loss and high susceptibility to electromagnetic interference.
- Precise Performance: Offers a non-linearity of 0.25%, ensuring critical accuracy for sensitive building automation and pneumatic control systems.
- Zero-Maintenance Design: The piezoresistive system is built to resist mechanical creepage and aging during intensive load changes in static and dynamic overpressure applications.
Common Questions
- What is the proper electrical connection for this sensor? This model uses a terminal block connection (often via a DIN EN 175301-803-A plug) and requires a DC power supply between 7V and 33V for the current loop.
- Can this sensor be used in steam applications? Yes, however, for steam pressure measurement, it is professionally recommended to install a syphon loop (pigtail) to create a water barrier and protect the transducer from direct heat.
- How do I troubleshoot a zero-pressure reading? Since the unit uses a live zero (4mA), a reading of 0mA typically indicates an open circuit, power loss, or terminal wiring failure rather than zero pressure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $302.48
-65%$302.48
$105.87Siemens Building Technology 7MF15654BB005EA1 Sensor
In technical HVACR and industrial hydraulic systems, the Siemens 7MF1565-4BB00-5EA1 Sensor operates as a high-precision SITRANS P200 pressure transmitter. This unit is specifically engineered to monitor gauge pressure in liquids, gases, and vapors within a 0-15 PSIG range. Utilizing a temperature-compensated ceramic measuring cell with a piezoresistive thick-film bridge, it delivers a strictly linear 4-20mA output signal, ensuring high measurement accuracy of 0.25% typical. This makes it a standard choice for contractors requiring reliable liquid pressure monitoring in aggressive or neutral media environments.
The 7MF15654BB005EA1 features a rugged stainless steel housing with a NEMA 4/IP65 rating, protecting the fully encapsulated electronics from humidity and temperature fluctuations. It utilizes a 1/4 inch MNPT process connection and a standard terminal block electrical connection for seamless integration into existing HVACR control loops. Designed without a display, this compact sensor focuses on long-term stability and high overload resistance, often up to 35 psi, making it ideal for industrial pressure sensing where mechanical aging must be minimized and EMC characteristics are critical for system performance.
Key Benefits
- Enhanced Durability: The ceramic element and Viton sealing material provide resistance to a wide range of aggressive media, including steam and chemicals.
- Reliable Signal Integrity: The two-wire 4-20mA current loop allows for long-distance transmission with minimal signal loss and high susceptibility to electromagnetic interference.
- Precise Performance: Offers a non-linearity of 0.25%, ensuring critical accuracy for sensitive building automation and pneumatic control systems.
- Zero-Maintenance Design: The piezoresistive system is built to resist mechanical creepage and aging during intensive load changes in static and dynamic overpressure applications.
Common Questions
- What is the proper electrical connection for this sensor? This model uses a terminal block connection (often via a DIN EN 175301-803-A plug) and requires a DC power supply between 7V and 33V for the current loop.
- Can this sensor be used in steam applications? Yes, however, for steam pressure measurement, it is professionally recommended to install a syphon loop (pigtail) to create a water barrier and protect the transducer from direct heat.
- How do I troubleshoot a zero-pressure reading? Since the unit uses a live zero (4mA), a reading of 0mA typically indicates an open circuit, power loss, or terminal wiring failure rather than zero pressure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
