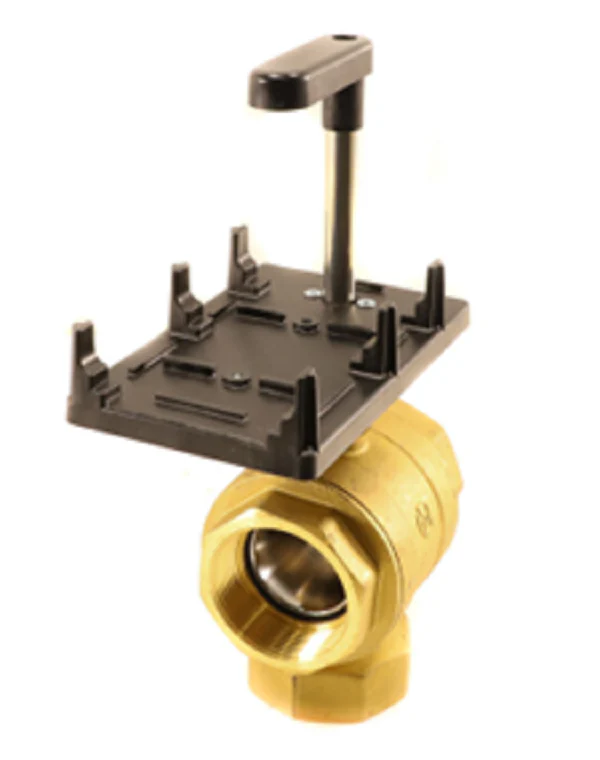

Siemens Building Technology 599-10370 Valve
The Siemens 599-10370 is a high-performance three-way ball valve engineered for precision flow control in commercial HVACR systems. Built with a 2-inch NPT female connection and a robust brass body, this valve is designed to handle hot water, chilled water, and up to 50% glycol solutions. It features a 40 Cv flow coefficient with an equal percentage flow characteristic, ensuring stable modulation and preventing hunting in air handlers and reheat coil applications. The chrome-plated brass ball and brass stem provide reliable operation, while the blowout-proof stem design enhances safety under high-pressure conditions up to a 200 psi close-off rating. Designed for versatility, the Siemens 599 series supports both mixing and diverting configurations. This valve is compatible with OpenAir actuators, featuring a universal mounting plate that allows for 90-degree increment rotation to fit tight mechanical spaces. With an ANSI Class IV leakage rating and a media temperature range of 35°F to 230°F, it is a veteran-preferred choice for contractors requiring durable rotary control valves.
Key Benefits- Optimized Flow Control: The equal percentage characterizer ensures linear heat output for superior temperature stability.
- Durability: Forged brass body and reinforced PTFE seals offer long-term reliability in closed-loop hydronic systems.
- High Close-Off: Rated for 200 psi close-off, preventing unwanted bypass and energy loss.
- Field Flexibility: Three-way mixing or diverting capability allows for standardized stocking and simplified field installation.
- Safety Design: Includes a blowout-proof stem and a manual operating handle for emergency overrides during power loss.
- Is this valve suitable for steam applications? No, the Siemens 599-10370 is rated for water and glycol solutions only, with a maximum media temperature of 230°F.
- Can I use this for both mixing and diverting? Yes, this 3-way ball valve is designed to function in either mixing or diverting piping arrangements.
- Which actuators are compatible with this body? It is designed to pair with Siemens GDE, GLB, and GMA series actuators using the integrated mounting bracket.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $382.12
-65%$382.12
$133.74Siemens Building Technology 599-10370 Valve
The Siemens 599-10370 is a high-performance three-way ball valve engineered for precision flow control in commercial HVACR systems. Built with a 2-inch NPT female connection and a robust brass body, this valve is designed to handle hot water, chilled water, and up to 50% glycol solutions. It features a 40 Cv flow coefficient with an equal percentage flow characteristic, ensuring stable modulation and preventing hunting in air handlers and reheat coil applications. The chrome-plated brass ball and brass stem provide reliable operation, while the blowout-proof stem design enhances safety under high-pressure conditions up to a 200 psi close-off rating. Designed for versatility, the Siemens 599 series supports both mixing and diverting configurations. This valve is compatible with OpenAir actuators, featuring a universal mounting plate that allows for 90-degree increment rotation to fit tight mechanical spaces. With an ANSI Class IV leakage rating and a media temperature range of 35°F to 230°F, it is a veteran-preferred choice for contractors requiring durable rotary control valves.
Key Benefits- Optimized Flow Control: The equal percentage characterizer ensures linear heat output for superior temperature stability.
- Durability: Forged brass body and reinforced PTFE seals offer long-term reliability in closed-loop hydronic systems.
- High Close-Off: Rated for 200 psi close-off, preventing unwanted bypass and energy loss.
- Field Flexibility: Three-way mixing or diverting capability allows for standardized stocking and simplified field installation.
- Safety Design: Includes a blowout-proof stem and a manual operating handle for emergency overrides during power loss.
- Is this valve suitable for steam applications? No, the Siemens 599-10370 is rated for water and glycol solutions only, with a maximum media temperature of 230°F.
- Can I use this for both mixing and diverting? Yes, this 3-way ball valve is designed to function in either mixing or diverting piping arrangements.
- Which actuators are compatible with this body? It is designed to pair with Siemens GDE, GLB, and GMA series actuators using the integrated mounting bracket.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
