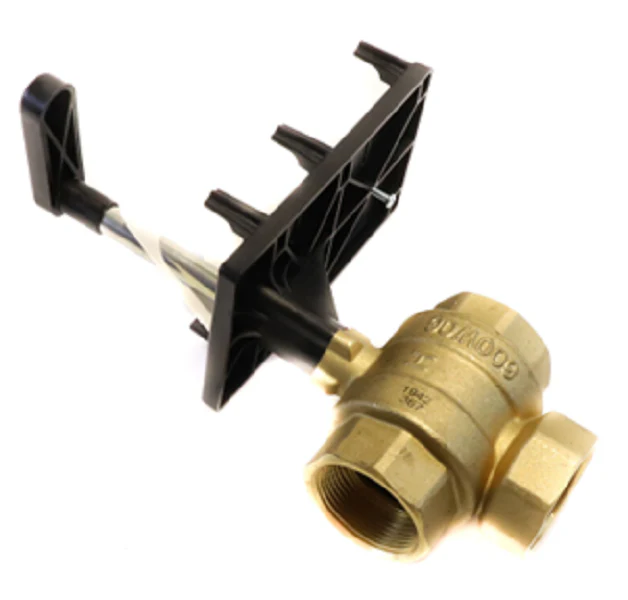

Siemens Building Technology 599-10367 Valve
The Siemens 599-10367 is a 1-1/2" NPT three-way ball valve engineered for precise equal percentage flow control in demanding hydronic systems. This 25 Cv valve body features a forged brass construction and is designed to handle hot water, chilled water, and up to 50% glycol solutions. With a close-off pressure rating of 200 psi and a static pressure capacity of 360 psi, this mixing or diverting valve ensures reliable performance in air handlers and fan coil units. The internal assembly consists of a chrome-plated brass ball and a blowout-proof brass stem with double EPDM O-ring seals for localized protection against stem leakage. This 599 Series three-way valve is built for direct coupling with Siemens OpenAir actuators, utilizing a universal mounting plate that can be rotated in 90-degree increments to accommodate tight field installations. An integrated glass-filled polymer flow optimizer maintains accurate linear-to-equal-percentage characteristics, preventing hunt and high-velocity noise in the coil loop.
Key Benefits:
- Versatile Application: Field-configurable for both mixing and diverting service in HVAC loops.
- Thermal Protection: Integrated standoffs provide a thermal barrier between the actuator and mounting plate to protect electronics from high media temperatures.
- Manual Override: Includes a manual operating handle for system balancing and emergency operation during power loss.
- Leakage Prevention: ANSI Class IV leakage rating on port A-AB ensures tight shutoff for energy efficiency.
- Reduced Condensation: The plastic mounting plate and extensions are designed to prevent condensation in chilled water applications.
Common Questions:
Is this valve compatible with spring-return actuators?
Yes, the Siemens 599-10367 is compatible with various OpenAir actuators, including GMA, GQD, and GLB series in both spring-return and non-spring return configurations.
What is the maximum media temperature range?
This 1-1/2" valve is rated for fluid temperatures ranging from 35°F to 230°F (2°C to 110°C).
Does this unit come with the actuator?
This part number refers to the valve body and mounting bracket assembly only; the electronic actuator must be selected and purchased separately based on your control signal requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
