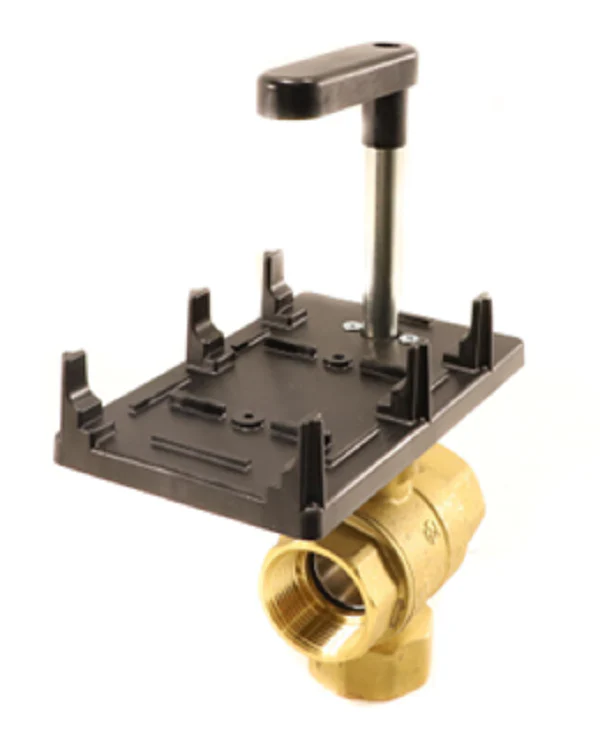

Siemens Building Technology 599-10364 Valve
The Siemens Building Technology 599-10364 Valve is a rugged 1-1/4 inch 3-way mixing valve designed for precise flow control in demanding hydronic systems. This high-performance ball valve features an equal percentage flow characteristic, ensuring stable heat transfer and linear control response across its full 16 Cv capacity. Built with a heavy-duty forged brass body (ANSI 250 rating), it utilizes a chrome-plated brass ball and brass stem to provide reliable operation in both chilled water and hot water applications. The valve is compatible with up to 50% glycol solutions, making it a standard choice for air handlers, fan coil units, and reheat coils. Contractors value the integrated universal mounting plate, which simplifies coupling with OpenAir actuators (GDE, GLB, GMA series). With a 200 psi close-off pressure rating and a blow-out proof stem, this DN32 ball valve ensures system integrity and leak-free performance under varied static pressures up to 360 psi.
Key Benefits- Optimized Flow Control: Internal equal percentage characterization prevents hunting and ensures accurate temperature regulation for HVAC coils.
- Thermal Protection: Integrated standoffs create a thermal barrier between the valve body and the actuator, protecting electronics from extreme media temperatures up to 250°F.
- Versatile Installation: The 3-way NPT ball valve design supports both mixing and diverting configurations with an adjustable bracket that rotates in 90-degree increments.
- Manual Override: Includes a factory-installed operating handle for manual positioning during power failures or system commissioning.
- Durable Construction: Features double EPDM O-ring stem seals and reinforced PTFE ball seals for long-term reliability and low maintenance.
What actuators are compatible with the Siemens 599-10364?
This valve is designed to pair seamlessly with Siemens OpenAir actuators, including the GDE, GLB, GMA, and GQD series, covering non-spring return and spring return requirements.
Can this valve be used for both mixing and diverting?
Yes, while commonly used as a mixing valve for coil control, the 599-10364 is engineered for both mixing and diverting applications in piping loops.
What is the maximum glycol concentration allowed?
The seals and internal components are rated for water or water-glycol mixtures up to a 50% concentration.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
