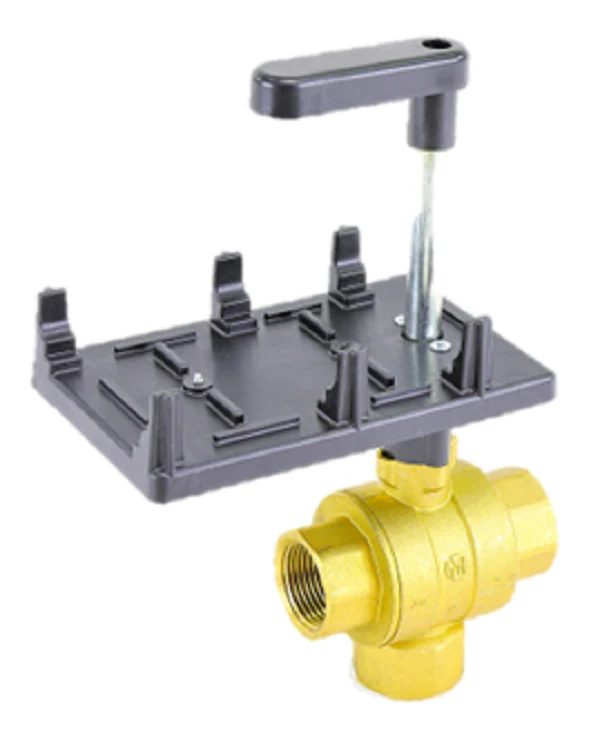

Siemens Building Technology 599-10363 Valve
The Siemens Building Technology 599-10363 Valve is a 1-inch, three-way ball valve engineered for precise control in hydronic systems. Designed for mixing or diverting applications, this valve features a 25 Cv flow coefficient and a modified equal percentage flow characteristic, ensuring linear heat transfer and stable temperature control in air handlers and reheat coils. The brass body is complemented by a chrome-plated brass ball and brass stem, providing robust chemical resistance for systems using up to 50% glycol. With a NPT female connection and an ANSI 250 body rating, this direct-coupled control valve is compatible with Siemens OpenAir actuators. A double O-ring stem design prevents leakage, while the blow-out proof stem enhances safety under high-pressure conditions. The universal mounting plate allows for field rotation in 90-degree increments, simplifying installation in tight mechanical spaces. This 1/4-turn rotary valve is essential for technicians seeking durable, high-close-off performance in commercial HVAC applications.
Key Benefits:- Versatile Flow Management: Functions as either a mixing or diverting valve to suit diverse terminal unit configurations.
- Precision Control: Maintains equal percentage flow to mirror coil heat output and prevent system hunting.
- High Pressure Reliability: Features an ANSI 250 rating and a 200 psi close-off to withstand demanding hydronic environments.
- Simplified Installation: The universal mounting plate and integrated manual operating handle facilitate quick field setup and maintenance.
- What actuator is compatible with the 599-10363? This valve is designed for use with Siemens OpenAir electronic actuators, including the GDE, GLB, and GMA series.
- Can this valve be used with glycol? Yes, the brass trim and EPDM O-rings are rated for water and water-glycol solutions up to 50% concentration.
- Is the flow characterizer included? This specific model features a glass-filled polymer flow optimizer to ensure accurate throttling performance.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
