Siemens Building Technology 599-10362 Valve

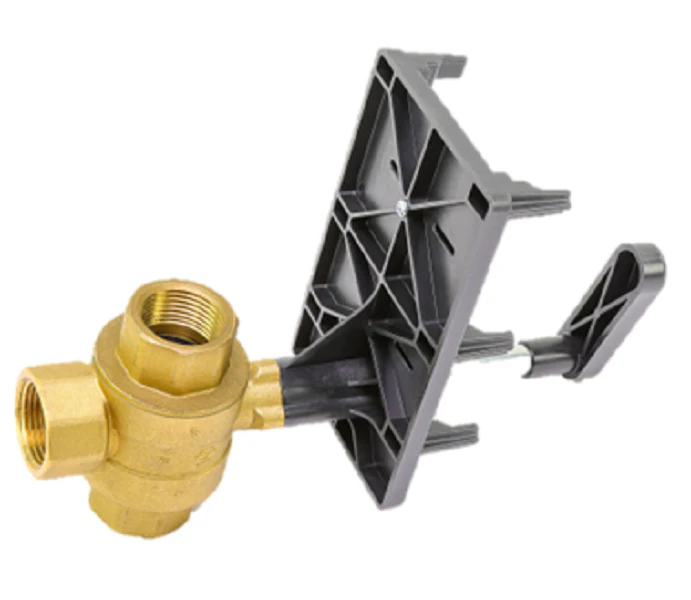

The Siemens 599-10362 is a high-performance three-way ball valve designed for precise flow control in demanding hydronic systems. This 1-inch NPT ball valve features a 16 Cv rating and is optimized for the regulation of hot or chilled water, as well as glycol solutions up to 50 percent. Engineered with a modified equal percentage flow characteristic, this valve mirrors the heat transfer curve of coils to ensure linear performance in air handlers, fan coil units, and reheat coils. The brass body is equipped with a chrome-plated brass ball and a blow-out proof brass stem, providing a robust ANSI 250 pressure rating and a 200 psi close-off capability. For maximum installation flexibility, the universal mounting plate can be rotated in 90-degree increments, allowing for easy integration with spring return or non-spring return OpenAir actuators. This rotary control valve maintains an ANSI Class IV leakage rating while supporting medium temperatures up to 250°F.
Key Benefits
- Linear Heat Transfer: The modified equal percentage flow design ensures stable control loop performance and efficiency in heating and cooling applications.
- Field Flexibility: Features a universal mounting bracket and a brass stem that accommodates various Siemens actuators for diverse automation requirements.
- High Close-Off Reliability: Delivers a 200 psi close-off pressure, preventing leakage and maintaining system integrity in high-head applications.
- Manual Override: Includes an integrated operating handle for manual valve positioning during startup or power loss.
- Durable internal trim: The chrome-plated brass ball and reinforced PTFE seals provide long-term resilience against pipe scale and chemical additives.
Common Questions
Can this valve be used for both mixing and diverting?
Yes, the Siemens 599-10362 is designed for 3-way mixing or diverting service, making it a versatile component for terminal unit and air handling unit piping configurations.
What actuators are compatible with the 1" 16 Cv valve?
This Siemens ball valve is compatible with GDE, GLB, GMA, and GQD series OpenAir actuators, supporting various control signals like proportional (0-10V), floating, or on/off.
What is the maximum glycol concentration allowed?
The valve and its EPDM O-rings are rated for media containing up to 50% glycol, making it suitable for standard freeze protection in chilled water loops.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
