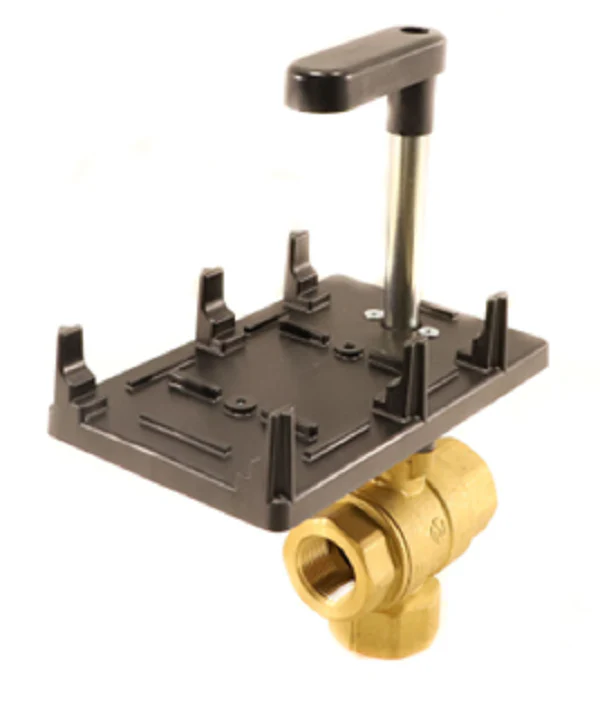

Siemens Building Technology 599-10360 Valve
The Siemens 599-10360 is a high-performance 3-way ball valve designed for precise mixing or diverting control in commercial HVACR systems. Featuring a 3/4" NPT connection and a 16 Cv flow coefficient, this valve utilizes an equal percentage flow characteristic to ensure linear heat transfer and stable temperature regulation in air handlers and reheat coils. The forged brass body is paired with a chrome-plated brass ball and a blow-out proof brass stem, providing a robust ANSI 250 pressure rating and a 200 psi close-off capability. Engineered for full-port efficiency without a flow characterizer, it handles hot water, chilled water, and up to 50% glycol solutions effectively. This Siemens 599 series valve features a universal mounting plate that allows for flexible actuator compatibility with OpenAir series dampers, and a thermal barrier to protect internal components during high-temperature operations up to 250°F. Professionals rely on this hydronic control valve for its reliable leakage class IV performance and field-reversible configuration.
- Universal Actuator Mounting: Compatible with various Siemens OpenAir actuators with a mounting plate that rotates in 90-degree increments for tight-space installations.
- Superior Close-Off: Maintains a 200 psi close-off rating with ANSI Class IV leakage, preventing bypass and improving system energy efficiency.
- High Thermal Tolerance: Rated for media temperatures ranging from 35°F to 250°F, making it suitable for both chilled water and heating applications.
- Mixing and Diverting Versatility: Can be piped for either mixing or diverting applications by following the flow arrows cast on the brass body.
- Double O-Ring Stem Packing: Enhanced stem seals prevent external leaks and extend the operational life under high static pressure (up to 360 psi).
Common Questions:
Can this valve be used for steam applications?
No, this specific model is designed for water and glycol solutions. For steam, you must specify a valve with high-temperature gaskets and stainless steel trim rated for steam service.
Is the flow characterizer included in the 599-10360?
This specific part number is a full-port valve, meaning it does not include a polymer flow characterizing insert, allowing for the maximum 16 Cv rating at the 3/4-inch size.
What actuators are compatible with the Siemens 599-10360?
It is designed to pair with Siemens GDE, GLB, GMA, and GQD series actuators using the universal mounting plate kit.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
