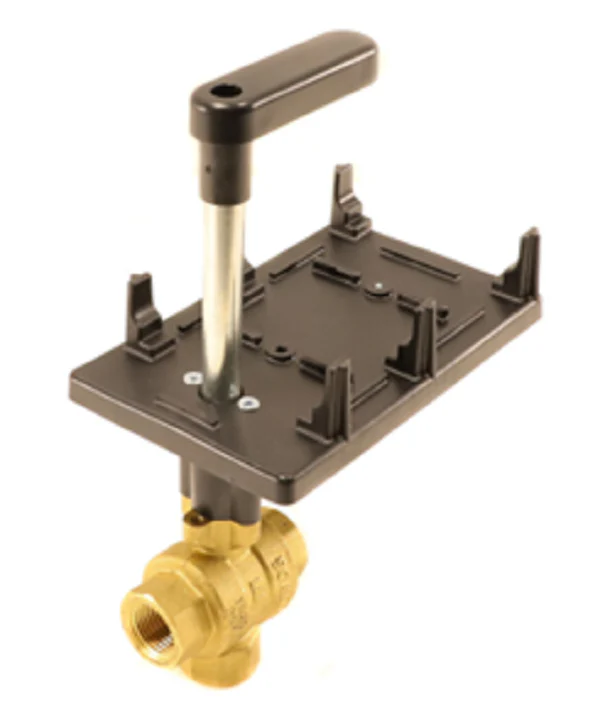

Siemens Building Technology 599-10357 Valve
The Siemens Building Technology 599-10357 Valve is a professional-grade 1/2 inch 3-way ball valve engineered for precise mixing or diverting flow control in commercial HVACR systems. Built with a rugged forged brass body (ASTM B283), this valve features a 10 Cv flow coefficient and a chrome-plated brass ball with a blow-out proof brass stem for enhanced safety and durability in high-pressure environments. Designed for equal percentage flow characteristics, it ensures stable temperature regulation in air handlers, fan coil units, and reheat coils. This rotary control valve is rated for ANSI 250 pressure classes and manages media temperatures from 35°F to 250°F, making it fully compatible with water and up to 50% glycol solutions. The internal assembly utilizes reinforced PTFE seals and double EPDM O-ring stem packing to maintain a 200 psi close-off rating and minimize leakage (ANSI Class IV). It integrates seamlessly with Siemens OpenAir actuators via a universal mounting bracket featuring a thermal barrier to protect the electronics from line heat.
Key Benefits- Versatile Piping Logic: Precision engineering allows for dual-use as either a mixing or diverting valve to suit varied hydronic configurations.
- High close-off Performance: Provides a 200 psi close-off rating, ensuring reliable shut-off and preventing energy-wasting bypass.
- Precise Flow Control: The 10 Cv rating combined with equal percentage flow geometry delivers linear heat output and superior loop stability.
- Contractor-Friendly Installation: Features a universal mounting plate that can be rotated in 90-degree increments for flexible actuator positioning in tight mechanical spaces.
- Robust Stem Design: The blow-out proof brass stem and double O-ring packing provide long-term leak protection under high static pressures (up to 360 psi).
What actuators are compatible with the Siemens 599-10357?
This valve body is designed to couple with Siemens OpenAir actuators, including the GDE, GLB, GMA, and GQD series, for 2-position, floating, or proportional control.
Can this valve be used for steam applications?
No, this specific model is rated for hot water, chilled water, and glycol solutions up to 50%. It is not suitable for steam service.
Does this valve require special orientation for installation?
Yes, ensure the flow follows the direction of the arrow cast on the valve body for ANSI Class IV leakage performance in the A-AB port direction.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
