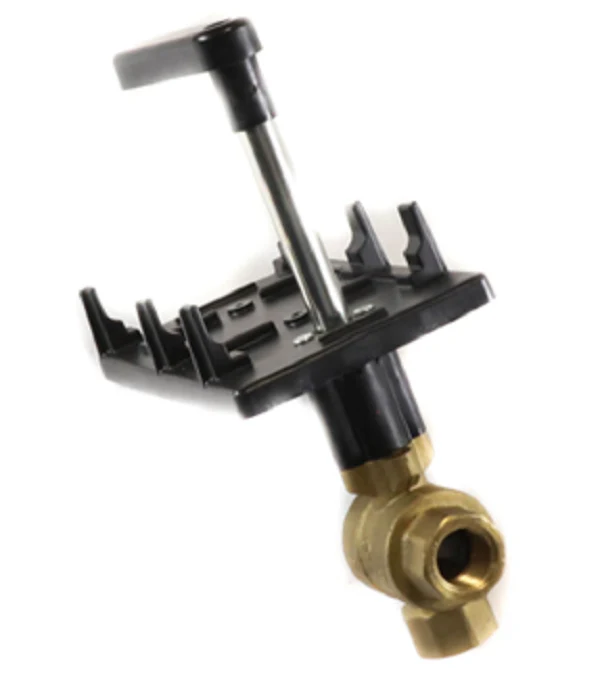

Siemens Building Technology 599-10356 Valve
The Siemens Building Technology 599-10356 is a professional-grade 3-way ball valve designed for precise flow control in demanding hydronic systems. Featuring a 1/2 inch NPT female connection and a 6.3 Cv flow coefficient, this valve is engineered for both mixing and diverting applications in air handlers, fan coil units, and reheat coils. The brass body construction is paired with a chrome-plated brass ball and a blowout-proof brass stem to ensure long-term reliability and high-pressure safety. With a modified equal percentage flow characteristic, it provides stable control of hot water, chilled water, and up to 50% glycol solutions. This 599 Series valve is rated for ANSI 250 pressure and maintains a 200 psi close-off with ANSI Class IV leakage, making it a rugged choice for contractors requiring a high-performance HVAC control valve compatible with Siemens GDE, GLB, and GMA actuators.
Key Benefits- Versatile Application: Functions effectively as either a mixing or diverting valve in 3-port hydronic configurations.
- High Pressure Durability: Forged brass construction rated for ANSI 250 with a 200 psi close-off rating for secure shut-off performance.
- Precise Flow Control: A 6.3 Cv rating combined with equal percentage flow characteristics ensures stable temperature regulation.
- Actuator Compatibility: Features a universal mounting plate that accepts various Siemens electronic actuators for seamless integration into building automation systems.
- Fluid Versatility: Suitable for a wide temperature range (35°F to 250°F) and compatible with water or 50% glycol mixtures.
Is this valve suitable for steam applications?
No, the 599-10356 is specifically designed for chilled water, hot water, and glycol solutions. It is not rated for steam services.
Can the actuator be mounted in any orientation?
The valve features a universal mounting plate that allows the actuator to be rotated in 90-degree increments, though it should not be mounted upside down to prevent moisture from entering the actuator housing.
What is the maximum glycol concentration allowed?
This valve is rated to handle up to a 50% glycol concentration in closed-loop hydronic systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $113.52
-65%$113.52
$39.73Siemens Building Technology 599-10356 Valve
The Siemens Building Technology 599-10356 is a professional-grade 3-way ball valve designed for precise flow control in demanding hydronic systems. Featuring a 1/2 inch NPT female connection and a 6.3 Cv flow coefficient, this valve is engineered for both mixing and diverting applications in air handlers, fan coil units, and reheat coils. The brass body construction is paired with a chrome-plated brass ball and a blowout-proof brass stem to ensure long-term reliability and high-pressure safety. With a modified equal percentage flow characteristic, it provides stable control of hot water, chilled water, and up to 50% glycol solutions. This 599 Series valve is rated for ANSI 250 pressure and maintains a 200 psi close-off with ANSI Class IV leakage, making it a rugged choice for contractors requiring a high-performance HVAC control valve compatible with Siemens GDE, GLB, and GMA actuators.
Key Benefits- Versatile Application: Functions effectively as either a mixing or diverting valve in 3-port hydronic configurations.
- High Pressure Durability: Forged brass construction rated for ANSI 250 with a 200 psi close-off rating for secure shut-off performance.
- Precise Flow Control: A 6.3 Cv rating combined with equal percentage flow characteristics ensures stable temperature regulation.
- Actuator Compatibility: Features a universal mounting plate that accepts various Siemens electronic actuators for seamless integration into building automation systems.
- Fluid Versatility: Suitable for a wide temperature range (35°F to 250°F) and compatible with water or 50% glycol mixtures.
Is this valve suitable for steam applications?
No, the 599-10356 is specifically designed for chilled water, hot water, and glycol solutions. It is not rated for steam services.
Can the actuator be mounted in any orientation?
The valve features a universal mounting plate that allows the actuator to be rotated in 90-degree increments, though it should not be mounted upside down to prevent moisture from entering the actuator housing.
What is the maximum glycol concentration allowed?
This valve is rated to handle up to a 50% glycol concentration in closed-loop hydronic systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
