Siemens Building Technology 599-10355 Valve

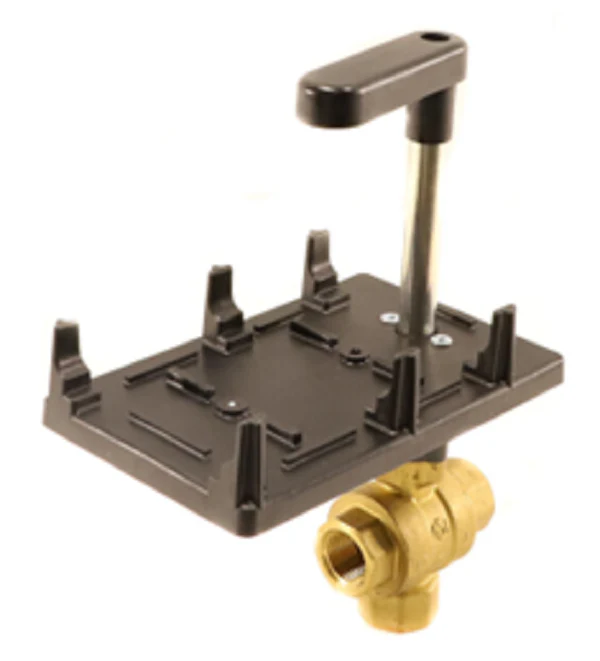

The Siemens Building Technology 599-10355 is a high-performance 3-way ball valve designed for precise flow control in demanding HVACR applications. This 1/2-inch valve features an NPT connection and a 4.0 Cv rating, making it ideal for managing hot or chilled water and up to 50% glycol solutions in air handlers, fan coil units, and reheat coils. Engineered with a durable forged brass body and a chrome-plated brass ball, the unit utilizes a brass stem with double EPDM O-ring packing to ensure leak-free performance. Its equal percentage flow characteristic provides linear heat output, optimizing system efficiency for contractors. With an ANSI 250 valve body rating and a 200 psi close-off capability, this 599 Series model is built for professional-grade reliability. The integrated universal mounting plate allows for seamless pairing with Siemens OpenAir actuators, featuring a thermal barrier to protect electronics from high media temperatures reaching up to 250°F.
Key Benefits- Precision Modulation: The modified equal-percentage flow characteristic ensures accurate temperature control and stable loop response.
- Robust Construction: A blow-out proof stem and forged brass design provide enhanced safety and durability under high-pressure conditions.
- Versatile Application: Rated for mixing or diverting service, specifically optimized for HVAC 3-way valve configurations in hydronic systems.
- Easy Integration: The 1/2-inch NPT female end connections and universal bracket simplify Siemens 599-10355 installation on standard piping.
- Reliable Sealing: Features reinforced PTFE seats and EPDM seals to maintain ANSI Class IV leakage standards at 200 psi close-off.
Is the Siemens 599-10355 suitable for steam applications?
No, this valve is engineered for water and glycol solutions up to 50%. Always verify media compatibility; for steam, a different series or stainless steel trim may be required.
Can this valve be field-converted between mixing and diverting?
Yes, the 599 Series 3-way valves are designed to function effectively in both mixing and diverting piping arrangements depending on the installation orientation.
What actuators are compatible with this model?
This valve is designed for use with Siemens OpenAir actuators, including the GDE, GLB, GMA, and GQD series, allowing for 2-position, floating, or modulating control.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
