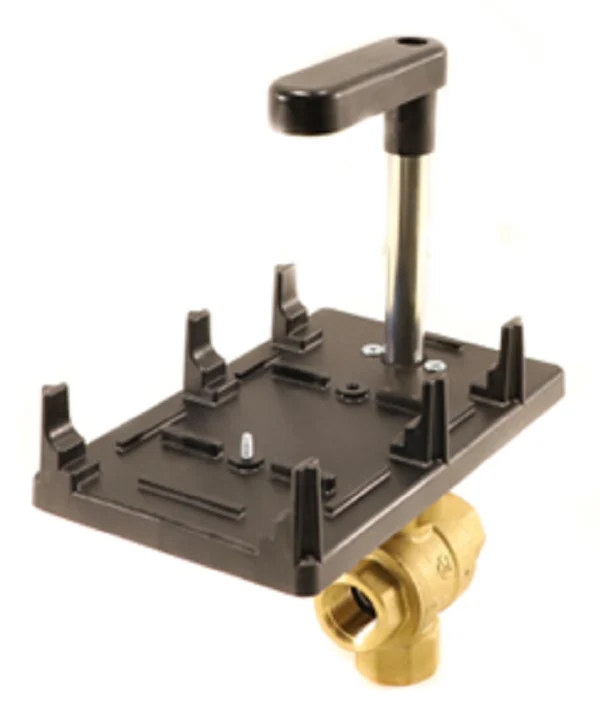

Siemens Building Technology 599-10352 Valve
The Siemens 599-10352 is a high-performance 1/2-inch 3-way ball valve engineered for precise hydronic flow control in demanding commercial HVAC systems. Featuring a 1.0 Cv rating and an equal percentage flow characteristic, this valve body is optimized for mixing or diverting applications within air handlers, fan coil units, and reheat coils. The forged brass body is rated for ANSI 250 and 600 WOG, ensuring structural integrity under high static pressures. A chrome-plated brass ball and a blowout-proof brass stem provide reliable 1/4-turn rotary operation, while the FNPT connections facilitate standard piped installation. This 599 Series three-way valve effectively handles hot water, chilled water, and up to 50% glycol solutions across a broad fluid temperature range. Compatible with Siemens OpenAir actuators, the integrated universal mounting plate allows for 90-degree rotation of the motor, offering technicians flexibility in tight mechanical spaces while maintaining a thermal barrier to protect the electronics.
Key Benefits- Precise Flow Modulation: The 1.0 Cv design with equal percentage flow allows for stable temperature control and prevents hunting in terminal unit loops.
- High Close-Off Capacity: Rated for 200 psi close-off with ANSI Class IV leakage, ensuring positive shutoff to prevent energy waste and ghost flows.
- Robust Construction: Utilizing a blow-out proof stem and EPDM O-rings, the valve maintains high-pressure safety and long-term seal integrity.
- Flexible Application: The 3-port configuration supports both mixing and diverting piping arrangements without requiring different valve bodies.
Is this valve compatible with non-Siemens actuators?
The Siemens 599-10352 is specifically designed to mate with Siemens GDE, GLB, GMA, and GQD series actuators via the integrated universal mounting plate for seamless mechanical synchronization.
Can I use this valve with glycol-based heat transfer fluids?
Yes, the brass valve body and internal seals are fully compatible with water-glycol mixtures containing up to 50% glycol concentration.
What is the maximum operating pressure for this unit?
This 1/2" NPT valve features an ANSI 250 body rating (600 WOG) and supports a maximum static pressure of 360 psi, with a maximum operating differential pressure of 60 psi.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
