Siemens Building Technology 599-10330 Valve

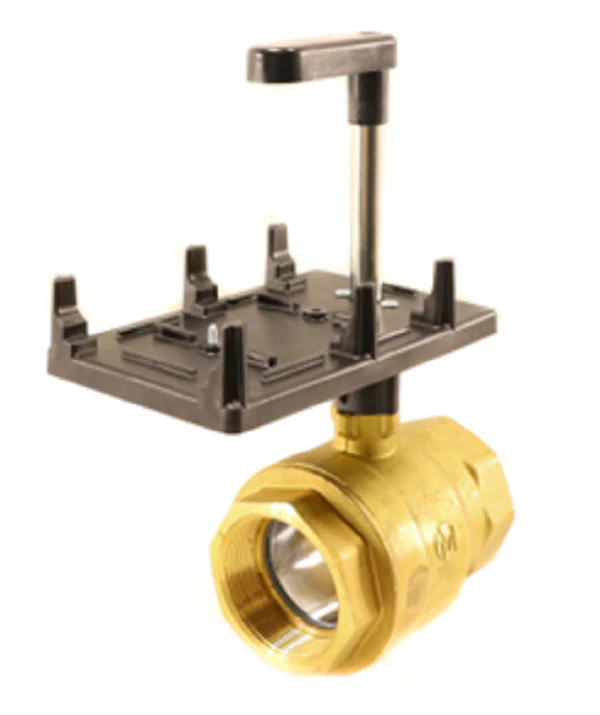

The Siemens 599-10330 is a high-performance 2-way ball valve engineered for precision control in commercial HVAC systems. Featuring a 2-inch NPT connection and a robust 160 Cv rating, this valve is designed to manage high-volume flow in chilled water, hot water, and up to 50% glycol solutions. The equal percentage flow characteristic ensures linear heat transfer by mirroring the coil's performance, providing stable temperature regulation in air handling units, fan coils, and reheat applications. Constructed with a durable brass body, a chrome-plated brass ball, and a blowout-proof brass stem, the 599-10330 supports a 200 psi close-off with ANSI Class IV leakage protection. Its universal mounting plate allows for seamless integration with Siemens OpenAir actuators, while the integrated operating handle facilitates manual positioning during commissioning or power loss.
Key Benefits- High Flow Capacity: The 160 Cv rating supports large-scale hydronic requirements without excessive pressure drops.
- Precision Control: Equal percentage flow maintains system stability and energy efficiency across the full stroke of the valve.
- Durable Construction: Chrome-plated brass ball and double EPDM O-ring stem seals prevent leaks and resist scale buildup.
- Field Versatility: A universal mounting plate simplifies installation by allowing the actuator to be rotated in 90-degree increments.
- Reliable Shut-off: Rated for ANSI 250 service with a 200 psi close-off rating ensure dependable isolation in high-pressure loops.
What actuators are compatible with the Siemens 599-10330?
This valve body is designed to pair with Siemens OpenAir series actuators, including GDE, GLB, GMA, and GQD models, depending on your torque and fail-safe requirements.
Can this valve be used for steam applications?
No, the 599-10330 is specifically rated for water and glycol-water solutions up to 250°F. It is not intended for steam service.
Is the flow characterizer integrated into the 2-inch model?
For this specific 160 Cv model, the valve typically functions as a full-port configuration to maximize flow, utilizing the ball geometry to achieve the desired control characteristic.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
