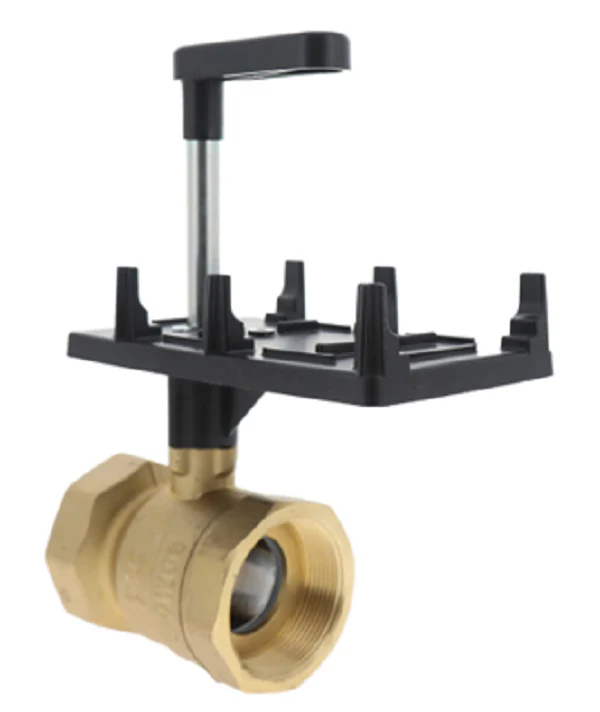

Siemens Building Technology 599-10327 Valve
The Siemens Building Technology 599-10327 is a high-performance 2-port ball valve engineered for precise control in commercial heating and cooling systems. Built with a rugged forged brass body and a 2-inch female NPT thread connection, this valve is designed to handle hot water, chilled water, and up to 50% glycol solutions. The internal assembly features a chrome-plated brass ball and a brass stem, providing reliable fluid management in demand-heavy environments like fan coil units, unit conditioners, and reheat coils.
With a 40 Cv flow coefficient and an equal percentage flow characteristic, the 599-10327 ensures linear control for modulating applications. It delivers a 200 psi close-off pressure rating and meets ANSI Class IV leakage standards, minimizing energy loss and preventing bypass when the valve is closed. The blowout-proof stem and double O-ring stem packing offer enhanced pressure safety, rated up to 600 WOG. For field flexibility, the universal mounting bracket allows for seamless pairing with Siemens OpenAir actuators, while the integrated operating handle permits manual overrides during startup or power loss events.
Key Benefits for Contactors:- Precision Metering: The 40 Cv rating and equal percentage flow curve prevent hunting and improve PID loop stability in varying load conditions.
- High Close-Off Performance: Provides 200 psi shut-off across the 2-inch port to prevent thermal creep in the coil.
- Durable Construction: The forged brass body and chrome-plated trim resist scale buildup and ensure consistent 1/4-turn operation.
- Installation Versatility: Features a universal mounting plate that accommodates both spring return and non-spring return electronic or pneumatic actuators.
- Thermal Protection: Designed with standoffs that create a thermal barrier to protect the actuator from pipe temperature extremes.
What media can the 599-10327 handle?
This valve is suited for hot or chilled water and technical water-glycol mixtures up to 50% concentration within a temperature range of 35°F to 230°F.
Is this valve compatible with existing Siemens actuators?
Yes, it is designed for direct coupling with the GDE, GLB, GMA, and GQD series OpenAir actuators using the universal mounting bracket.
Does this valve include a flow characterizer?
Yes, this model utilizes a glass-filled polymer flow optimizer to achieve its equal percentage flow characteristic, making it ideal for modulating chilled and hot water applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
