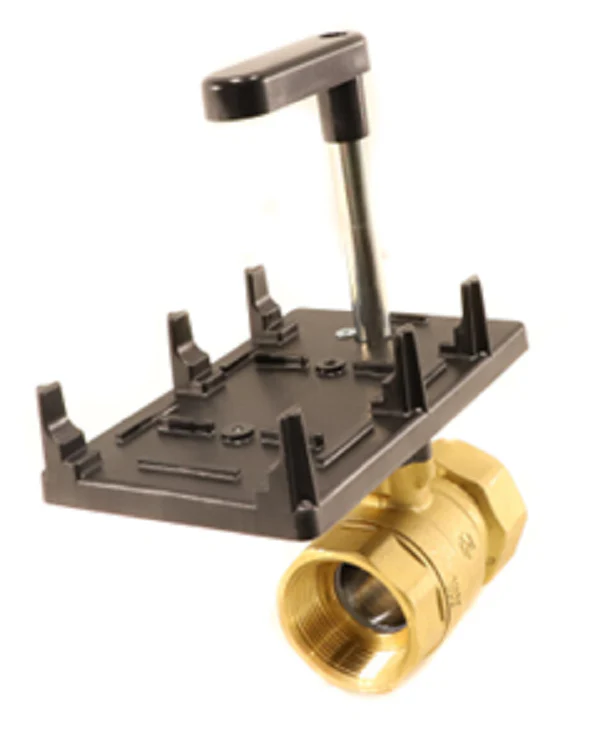

Siemens Building Technology 599-10322 Valve
The Siemens Building Technology 599-10322 is a precision-engineered 1 1/2-inch 2-way ball valve designed for demanding HVAC applications. This Siemens 599-10322 valve features a forged brass body and 25 Cv flow coefficient, delivering optimized control in chilled water, hot water, and up to 50% glycol solutions. Built with a chrome plated brass ball and brass stem, it utilizes an equal percentage flow characteristic to ensure linear heat transfer across various load conditions. For technicians, the universal mounting plate and NPT ball valve connections simplify field installation, while the blow-out proof stem provides enhanced safety under high-pressure conditions up to 200 psi close-off. This industrial HVAC ball valve is ideally suited for regulating flow in fan coil units, unit conditioners, and reheat coils where ANSI Class IV leakage standards are required for efficiency.
Key Benefits- Optimized Flow Control: The integrated equal percentage flow insert prevents hunting and ensures stable system temperature regulation.
- High Close-Off Protection: Rated for 200 psi close-off with ANSI Class IV leakage, minimizing energy loss in closed loops.
- Durable Construction: Features a forged brass body with a chrome plated brass ball and EPDM O-rings for reliable operation in temperatures from 35°F to 250°F.
- Simplified Integration: Universal mounting bracket allows for 90-degree actuator rotation, facilitating easy wiring and installation in tight mechanical spaces.
- Thermal Protection: Includes standoffs that act as a thermal barrier, protecting the actuator from heat transfer via the valve body.
What is the maximum glycol concentration for the Siemens 599-10322?
This Siemens 599 series valve is rated for water and water-glycol solutions with a concentration up to 50% technical grade glycol.
Is the 599-10322 compatible with OpenAir actuators?
Yes, it is specifically designed to couple with Siemens OpenAir electronic and pneumatic actuators using the standard 1/4-turn rotary interface.
Can I manually operate this valve in a power failure?
Yes, the valve assembly includes a manual operating handle, allowing for physical override during commissioning or loss of power.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
