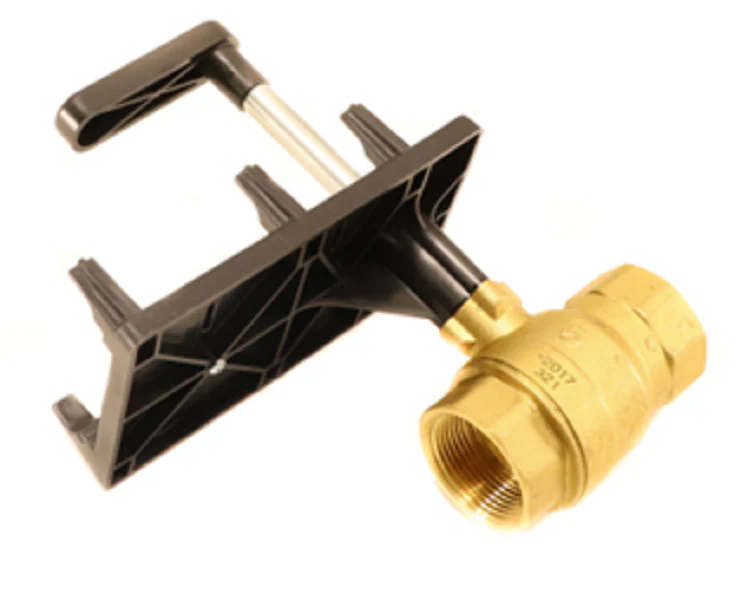

Siemens Building Technology 599-10321 Valve
The Siemens Building Technology 599-10321 is a high-capacity 1 1/4 inch 2-way ball valve designed for precision modulation in hydronic systems. Engineered with a 100 Cv rating and a forged brass body, this valve facilitates an equal percentage flow characteristic, ensuring linear heat output across a wide range of thermal loads. The chrome-plated brass ball and brass stem are built for longevity in demanding HVACR environments, supporting media temperatures from 35°F to 250°F. Professional installers utilize the 599-10321 for effective control of hot water, chilled water, and glycol solutions up to 50% in air handling units, fan coils, and reheat coils.
This Siemens 599-10321 ball valve features a 1/4-turn rotary control mechanism and a blow-out proof stem to maintain ANSI Class IV leakage standards even at a 200 psi close-off pressure. The NPT threaded connections allow for traditional pipe fitting integration with 1.25-inch schedules. Compatible with Siemens OpenAir actuators, the assembly includes a universal mounting plate and a manual operating handle, providing flexibility for tight mechanical room configurations where actuator rotation is necessary for clearance or wiring access.
Key Benefits- High Flow Capacity: Delivers a 100 Cv rating suitable for large-scale secondary terminal units.
- Thermal Integrity: Integrated thermal barriers protect electronic actuators from high-temperature hydronic loops.
- Simplified Installation: Universal mounting bracket and 90-degree rotation increments facilitate versatile field mounting.
- Reliable Shutoff: Maintains 200 psi close-off integrity to prevent unwanted energy transfer during bypass or off-cycles.
- Manual Override: Direct manual handle allows for mechanical positioning during power loss or system commissioning.
What actuators are compatible with the Siemens 599-10321?
This valve body is primarily designed to interface with Siemens OpenAir series actuators, including GDE, GLB, and GMA models, using the standard universal mounting plate.
Can this valve be used for steam applications?
No, the 599-10321 is rated for water and glycol solutions up to 250°F; it is not recommended for high-pressure steam service.
Does the 100 Cv rating mean it is a full-port valve?
Yes, in the 1 1/4" size, a 100 Cv rating typically indicates a full-port configuration without a flow characterizer insert, allowing for maximum fluid volume.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
