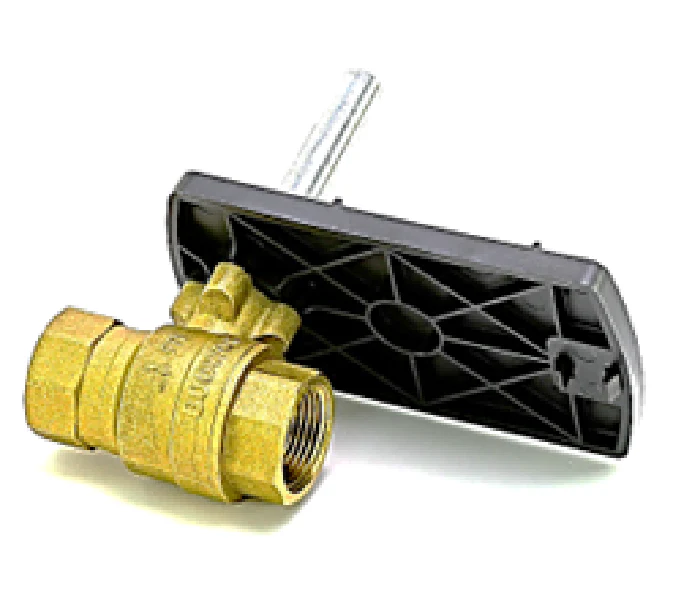

Siemens Building Technology 599-10311S Valve
The Siemens 599-10311S Valve is a professional-grade 3/4 inch NPT 2-way ball valve designed for high-performance fluid control in HVACR systems. Built with a rugged brass body and high-grade stainless steel ball and stem, this 25 Cv valve is specifically engineered to handle hot water, chilled water, and up to 50% glycol solutions. As a full-port model without a flow characterizer insert, it provides high flow capacity and is an ideal choice for 2-position or multi-state control in fan coil units, unit conditioners, and reheat coils. The normally closed configuration ensures system safety, while the 200 psi close-off rating and ANSI Class IV leakage standard provide reliable isolation even under high-pressure conditions.
This 599-10311S is fully compatible with OpenAir actuators, including the GDE, GLB, and GMA series. It features a universal mounting plate and standoffs that create a thermal barrier to protect the actuator from fluid temperatures reaching up to 250°F. The blow-out proof stem and double O-ring packing ensure long-term seal integrity in demanding contractor environments. Whether you are performing a new installation or a system retrofit, the NPT female connections and 90-degree rotation provide a straightforward setup for precise hydronic control.
Key Benefits:- Corrosion Resistance: The 316 stainless steel ball and stem offer superior protection against harsh media compared to chrome-plated options.
- High Flow Efficiency: A 25 Cv rating in a 3/4" frame allows for significant volume with minimal pressure drop.
- Serviceability: Includes an integrated operating handle for manual override during power failures or initial system commissioning.
- Flexible Installation: The universal mounting plate can be rotated in 90-degree increments to accommodate tight mechanical room piping.
- Durable Sealing: Features reinforced PTFE seats and EPDM O-rings for a 600 WOG pressure rating.
- Which actuators work with this valve? This Siemens 599-10311S is designed to pair directly with Siemens dampener actuators like the GDE131.1P or GMA161.1P using the appropriate bracket kit.
- Can this be used for modulating control? While this is a full-port valve, it provides a modified equal percentage flow characteristic; however, models with flow characterizer disks are often preferred for high-precision modulating applications.
- What is the maximum fluid temperature? This valve is rated for media temperatures between 35°F and 250°F.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
