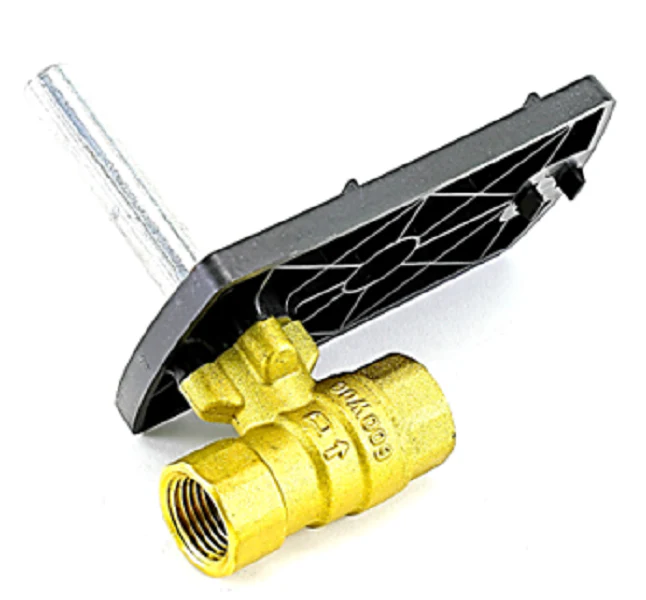

Siemens Building Technology 599-10304 Valve
The Siemens 599-10304 Valve is a rugged 1/2" NPT two-way ball valve designed for precise hydronic flow control in demanding commercial HVAC systems. This 2.5 Cv ball valve features an equal percentage flow characteristic, ensuring linear heat output even as system temperatures fluctuate. Built with a forged brass body (ASTM B283, C37733) and a chrome-plated brass ball, it provides a 200 psi close-off rating and 360 psi static pressure capacity. Engineered for compatibility with Siemens OpenAir actuators, this valve includes a universal mounting plate that can be rotated in 90-degree increments to accommodate tight piping configurations. The design incorporates thermal barrier standoffs and a blow-out proof stem, making it ideal for chilled water, hot water, and up to 50% glycol solutions in fan coil units and reheat coils. Contractors can rely on the manual operating handle for commissioning or emergency override during power loss, while the ANSI Class IV leakage rating ensures tight shutoff for maximum system efficiency.
Key Benefits:
- Precision Flow Control: The equal percentage flow design prevents hunting and improves the lifespan of your actuators in modulating applications.
- Durable Construction: Features a high-tensile brass body with a chrome-plated ball and double O-ring stem packing to prevent leaks under high-pressure conditions.
- Simplified Installation: The universal mounting plate and rotational flexibility allow for faster field wiring and reduced labor costs.
- Thermal Protection: Integrated standoffs create a thermal barrier, preventing heat transfer that can damage electronic actuators.
- Reliable Close-off: Rated for 200 psi close-off to ensure no-flow conditions are strictly maintained across coils.
Common Questions:
What actuators are compatible with the Siemens 599-10304?
This valve body is designed to pair directly with Siemens Building Technology OpenAir actuators, including the GDE, GLB, GMA, and GQD series, using the included universal mounting plate.
Can this valve be used in steam applications?
No, the Siemens 599-10304 is specifically rated for liquid media, including hot water, chilled water, and glycol mixtures up to 50% concentration, with a maximum temperature of 250°F.
Does the valve come with a manual override?
Yes, it includes an integrated operating handle that allows technicians to manually position the ball during a power failure or system testing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
