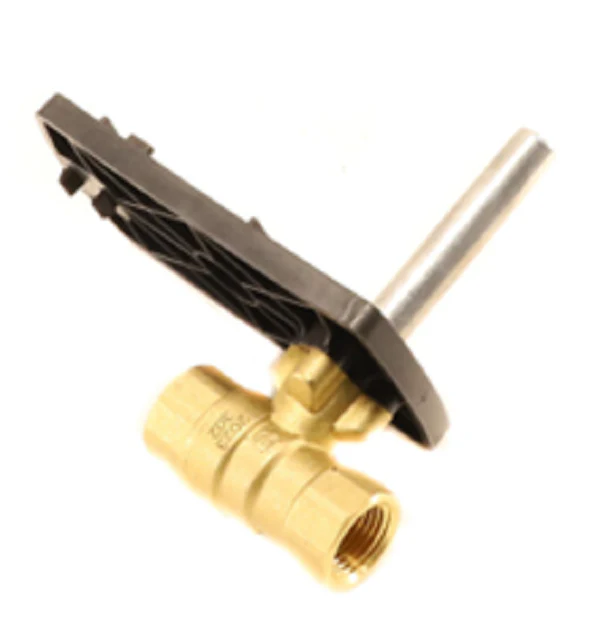

Siemens Building Technology 599-10302 Valve
The Siemens 599-10302 is a professional-grade 1/2 inch NPT ball valve engineered for precise equal percentage flow control in demanding HVAC applications. This two-way control valve features a robust brass body combined with a chrome-plated brass ball and brass stem, ensuring reliable performance in systems utilizing hot water, chilled water, or up to 50% glycol solutions. With a 1.0 Cv flow coefficient, this valve is optimized for smaller terminal units such as fan coils, convectors, and reheat coils where accurate fluid regulation is critical for maintaining consistent discharge air temperatures.
Designed for seamless integration with Siemens OpenAir actuators (GDE, GLB, GMA, and GQD series), this valve provides an industry-leading 200 psi close-off pressure and meets ANSI Class IV leakage standards. The specialized flow optimizer insert creates a linear heat transfer characteristic, mirroring the coil's performance for stable loop control. For field convenience, a blow-out proof stem and a manual operating handle allow for secure adjustments even during power failures, while the universal mounting plate supports 90-degree actuator rotation to fit tight mechanical spaces.
Key Benefits for Contractors:- Equal Percentage Flow Control: Tailored for linear heat transfer in coil-based HVAC systems to prevent hunting and temperature swings.
- High Close-Off Protection: Rated for 200 psi close-off with low leakage rates, vital for maintaining system integrity under high static pressure.
- Durable Construction: The chrome-plated brass ball and double O-ring stem seals offer superior resistance to corrosion and wear compared to standard ball valves.
- Flexible Installation: Features a thermal barrier and 1/4-turn rotary design that simplifies integration with electronic or pneumatic actuators.
- Broad Compatibility: Supports a temperature range from 35°F to 250°F, covering most hydronic heating and cooling requirements.
Which actuators are compatible with the 599-10302?
This valve is designed for Siemens GDE, GLB, GMA, and GQD series OpenAir actuators. Use the universal mounting bracket for standard coupling.
Can this valve be used for steam applications?
No, this specific brass-trimmed model is designed for water and glycol solutions. For steam service, a stainless steel trim option is required.
What is the purpose of the flow optimizer?
The glass-filled polymer optimizer changes the flow characteristic to equal percentage, which is necessary for stable control loops in terminal units.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
