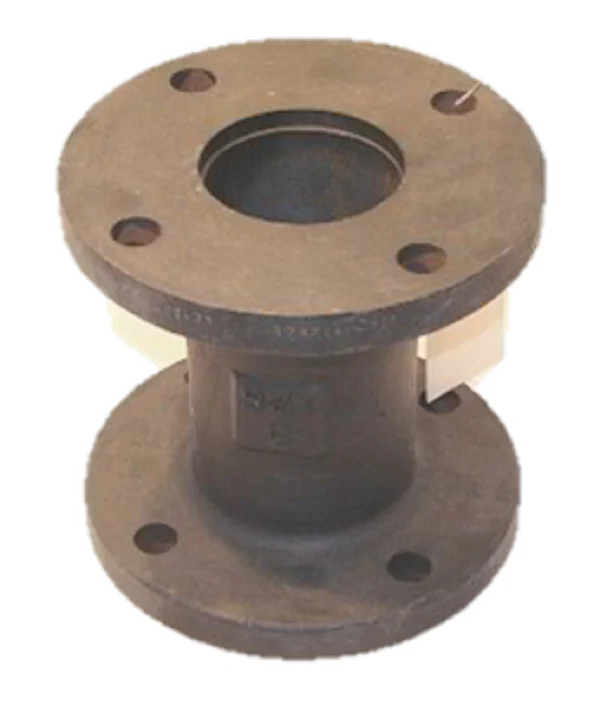

Siemens Building Technology 599-05012 Valve
The Siemens Building Technology 599-05012 is a precision-engineered 3-inch 3-way service flange valve designed for demanding hydronic and steam applications. Specifically built for compatibility with the Flowrite 599 Series, this ANSI Class 125 valve body features a heavy-duty cast iron construction. It is designed to work in both mixing and diverting configurations, facilitating efficient temperature control by modulating the flow of chilled water, hot water, or 50% water-glycol solutions. The 3-way globe valve design utilizes a 3/4-inch stroke and is rated for a Cv of 100, ensuring high-capacity performance in commercial HVAC systems. This service valve allows technicians to access internal stem and plug assemblies without the need for full valve removal, significantly reducing labor hours during routine inspections. With a metal-to-metal seat and stainless steel stem, it maintains ANSI Class IV leakage standards, providing the tight shut-off and reliability required for large-scale air handling units and terminal boxes.
Key Benefits- Interchangeable Trim: Fully compatible with 3-inch Flowrite 599 Series pneumatic and electronic actuators for versatile control options.
- Technician-Friendly Design: The service flange configuration allows for internal maintenance and parts replacement while the valve remains in-line.
- High-Capacity Flow: Rated for 100 Cv, providing efficient volume control for large HVAC loops.
- Industrial Durability: Cast iron ASTM A126 body and stainless steel stem ensure performance in systems with high operating differential pressures.
- Precise Modulation: Engineered for equal percentage flow characteristics, optimizing heat transfer in cooling and heating coils.
Is the 599-05012 suitable for steam applications?
Yes, these Siemens globe valves are rated for low-pressure steam, though they are primarily optimized for water and glycol-based hydronic systems.
What is the maximum pressure rating for this 3-way valve?
This specific model is built to ANSI Class 125 specifications, suitable for standard commercial building pressures.
Can this valve be field-converted between mixing and diverting?
The 599-05012 is a 3-way valve body that can be piped for either mixing or diverting service depending on the system design and actuator orientation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
