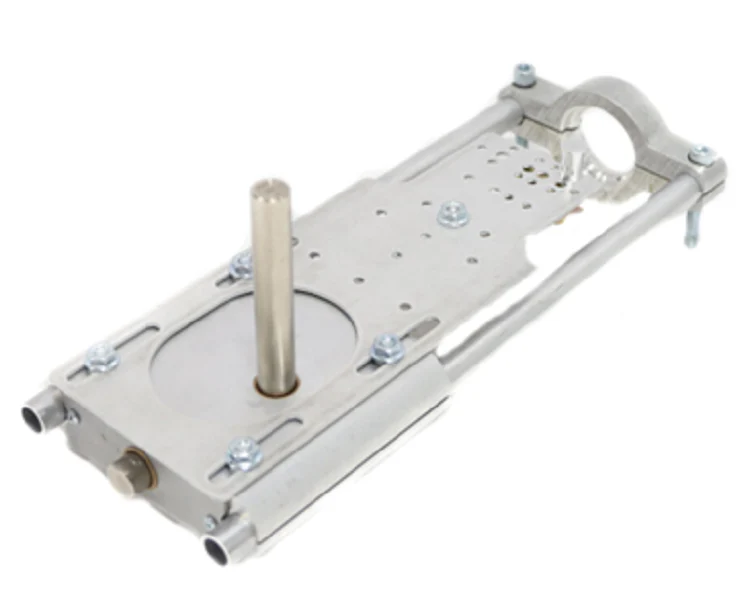

Siemens Building Technology 599-03610 Linkage
The Siemens Building Technology 599-03610 Linkage is a heavy-duty steel rack and pinion mounting assembly designed to interface OpenAir electronic actuators with Flowrite 599 Series valves. Engineered for technical precision in demanding hydronic systems, this linkage facilitates the transformation of rotary actuator movement into the 3/4-inch linear stroke required for accurate valve positioning. This specific kit is optimized for use with GCA121 and GCA161 spring-return and non-spring return actuators, providing a secure mechanical connection to 1/2-inch through 2-inch two-way and three-way globe valves.
For field technicians, the 599-03610 ensures reliable control of water and glycol solutions (up to 50%) in air handling units and central plant applications. The robust steel construction minimizes mechanical play, ensuring stable modulation and long-term performance in high-duty cycle environments. By utilizing this HVAC valve linkage kit, contractors can maintain the integrity of the building automation system through precise flow regulation and dependable fail-safe positioning when paired with compatible spring-return actuators.
Key Benefits- Compatible with GCA121.1U and GCA161.1U OpenAir actuators for seamless integration.
- Designed specifically for Flowrite 599 Series valves ranging from 1/2" to 2" in diameter.
- Constructed from high-grade steel to withstand industrial HVAC vibrations and thermal shifts.
- Supports both 2-way and 3-way valve configurations with standard 3/4-inch stroke lengths.
- Maintains accurate linear positioning for critical water and glycol flow control.
Is the 599-03610 compatible with non-Siemens actuators?
This linkage is specifically engineered for the mounting patterns and torque profiles of Siemens OpenAir GCA series actuators. Attempting to adapt it to third-party brands may result in improper stroke alignment or mechanical failure.
Does this kit include the actuator and valve body?
No, this is a linkage-only kit consisting of the rack and pinion bracket. The GCA actuator and Flowrite valve body must be sourced separately.
What maintenance is required for the rack and pinion assembly?
In standard clean-air HVAC environments, these linkages are designed for low maintenance. Periodically inspect the set screws and pinion gears for debris or signs of wear during routine preventative maintenance cycles to ensure smooth linear movement.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
