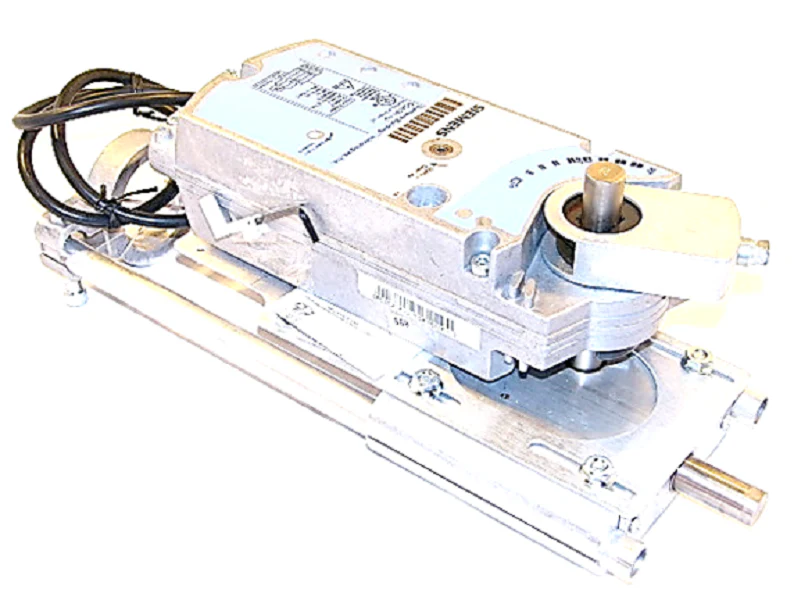

Siemens Building Technology 599-03609 Actuator
The Siemens 599-03609 is a heavy-duty spring return valve actuator assembly featuring the GCA161.1U electronic motor, engineered for high-torque applications in building automation systems. Built for proportional 0-10VDC control, this rack-and-pinion unit provides precise modulation for Flowrite 599 Series globe valves ranging from 1/2-inch to 2-inch sizes. With a 160 lb-in torque rating and a 3/4-inch stroke, it effectively transforms rotary movement into dependable linear positioning for 2-way and 3-way water or glycol-based systems. The 24VAC/DC operating voltage and brushless DC motor technology ensure stall protection and long-term reliability in demanding HVAC control environments.
This Siemens OpenAir actuator is specifically designed for fail-safe performance, utilizing a mechanical spring return to drive the valve to its normal position during power loss. The all-metal housing and NEMA 2 rating make it a standard choice for central plant applications and large air handling units. Installation is streamlined through a self-centering shaft coupling and a direct-coupled universal bonnet that requires no specialized tools. For field adjustments, the unit includes a manual override with a 3mm hex wrench and a clear visual position indicator to verify valve state at a glance.
Key Benefits- Precision Modulation: Optimized for 0-10VDC modulating control, ensuring accurate fluid flow and temperature stability.
- Superior Fail-Safe: Robust spring return mechanism provides a reliable mechanical return to the default position upon power interruption.
- High Torque Capacity: Delivers 160 lb-in (18 Nm) of force, capable of handling large-orifice Siemens Flowrite valves up to 2 inches.
- Contractor-Friendly Install: Features a brushless DC motor with internal stall protection and a tool-free universal linkage for faster commissioning.
Is the 599-03609 compatible with older 599 series valves?
Yes, this assembly is designed specifically for Siemens 599 Series Flowrite globe valves with a 3/4-inch stroke and is compatible with both 2-way and 3-way configurations.
Can I change the fail-safe direction in the field?
The fail-safe direction (Normally Open or Normally Closed) is determined by the specific valve body and the mounting orientation of the GCA161.1U actuator onto the linkage.
Does this unit provide position feedback to the controller?
Yes, the GCA161.1U model provides a 0-10VDC output signal that corresponds to the actual position of the actuator for system monitoring and verification.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
