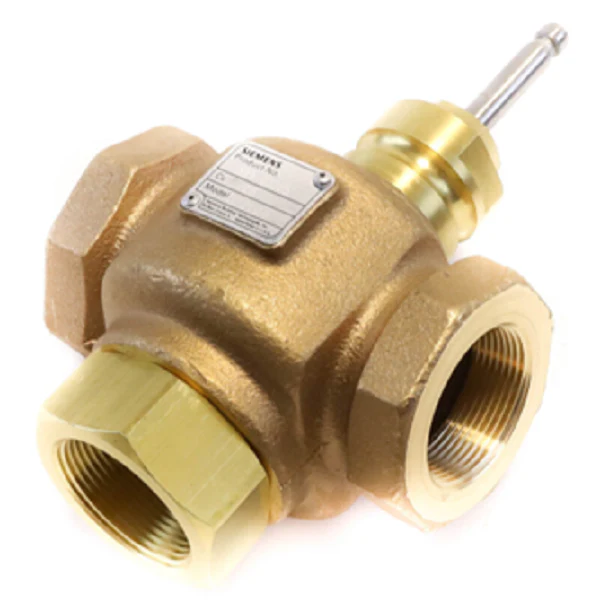

Siemens Building Technology 599-03205 Valve
The Siemens 599-03205 is a professional-grade, 1 1/2-inch 3-way mixing globe valve engineered for precision temperature control in hydronic systems. Featuring a robust UNS CA844 bronze body and high-quality brass trim, this 25 Cv valve is built to manage hot or chilled water and glycol solutions up to 50% concentration. Designed for versatility, the direct-coupled universal bonnet allows for seamless integration with a wide range of electronic and pneumatic Flowrite 599 series actuators. With an ANSI Class 250 pressure rating and Class IV leakage performance (0.01% of Cv), this valve ensures tight close-off and reliable multi-port mixing. The equal percentage/linear flow characteristic provides stable modulation, while the 1 1/2" NPT female connections facilitate straightforward installation into existing piping. Professionals trust this 1.5-inch mixing valve body for demanding HVACR applications requiring high rangeability and durable metal-to-metal seating.
Key Benefits- Precise Mixing Control: Optimized for blending two water sources to maintain consistent discharge temperatures.
- High Pressure Durability: Rated for ANSI Class 250, supporting high-rise and industrial HVAC applications.
- Maintenance-Friendly Design: Features cartridge-type packing for quick servicing without removing the valve from the line.
- Actuator Versatility: Compatible with both electronic (SKB, SKC, SKD, SQK) and pneumatic (Flowrite 599) actuators using a standard 3/4" (20mm) stroke.
Is this valve suitable for steam applications?
No, this specific model features brass trim and EPDM O-rings optimized for water and water-glycol mixtures. For steam service, please verify compatibility with stainless steel trim models.
Can I use this for diverting applications?
This is a 3-way mixing valve designed with two inlets and one outlet. While some technicians use mixing valves for diverting, performance and flow characteristics are specifically calibrated for mixing service.
What is the maximum medium temperature?
The 599-03205 is rated for a medium temperature range of 20°F to 250°F (-7°C to 120°C).
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
