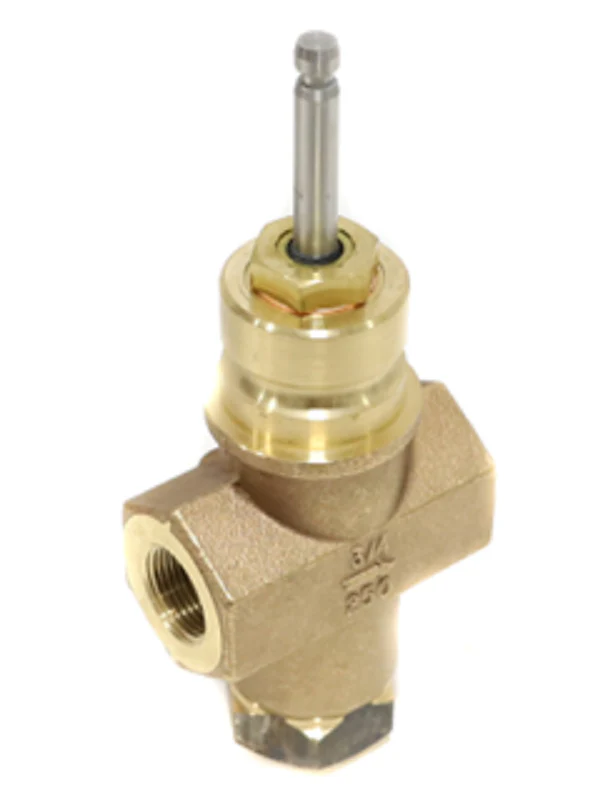

Siemens Building Technology 599-03202 Valve
The Siemens 599-03202 is a heavy-duty 3-way mixing globe valve designed for precise fluid control in demanding hydronic systems. Featuring a 3/4 inch NPT connection and a 6.3 Cv flow coefficient, this valve is a staple for contractors managing HVAC control valve installations. The bronze body (UNS CA 844) and durable brass trim provide the structural integrity required for high-pressure loops, rated for ANSI Class 250 service. This model is ideal for regulating hot water, chilled water, and up to 50% water-glycol solutions in terminal units like fan coils, radiators, and baseboard heaters.
Engineered for seamless integration, the Siemens globe valve features a direct-coupled universal bonnet, allowing for tool-free actuator mounting. This shippable HVAC part offers an equal percentage flow characteristic on the throttling port, ensuring stable temperature control even during low-load conditions. With a 100:1 rangeability and ANSI Class IV leakage rating, technicians can rely on this mixing valve for tight shut-off and long-term performance in commercial and residential hydronic heating systems. The EPDM O-ring packing and metal-to-metal seating are designed to withstand media temperatures ranging from 20°F to 250°F.
Key Benefits- Superior Control Precision: High rangeability (greater than 100:1) allows for fine-tuned modulation in varying flow demands.
- Rugged Construction: The bronze body and brass internals provide corrosion resistance and high-pressure tolerance up to 250 psi.
- Maintenance Efficiency: Features a field-replaceable cartridge-type packing and universal bonnet for rapid service and actuator swaps.
- Actuator Compatibility: Designed to work with Siemens SSA, SSP, SFA, and SFP series electronic or pneumatic actuators with a 3/4" stroke.
Is the Siemens 599-03202 suitable for steam applications?
This specific model is optimized for water and glycol-water solutions. Service for low-pressure steam generally requires stainless steel trim and specific high-temperature packing; always verify your specific medium against the brass trim limits.
Can this valve be used for diverting service?
No, the 599-03202 is specifically engineered as a mixing valve (two inlets, one outlet) to blend supply water. Using a mixing-style globe valve in a diverting configuration can lead to heavy seat slam and premature failure.
What is the maximum differential pressure for this valve?
The recommended maximum differential pressure for modulating service with the brass trim is 25 psi to prevent cavitation and ensure quiet operation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
