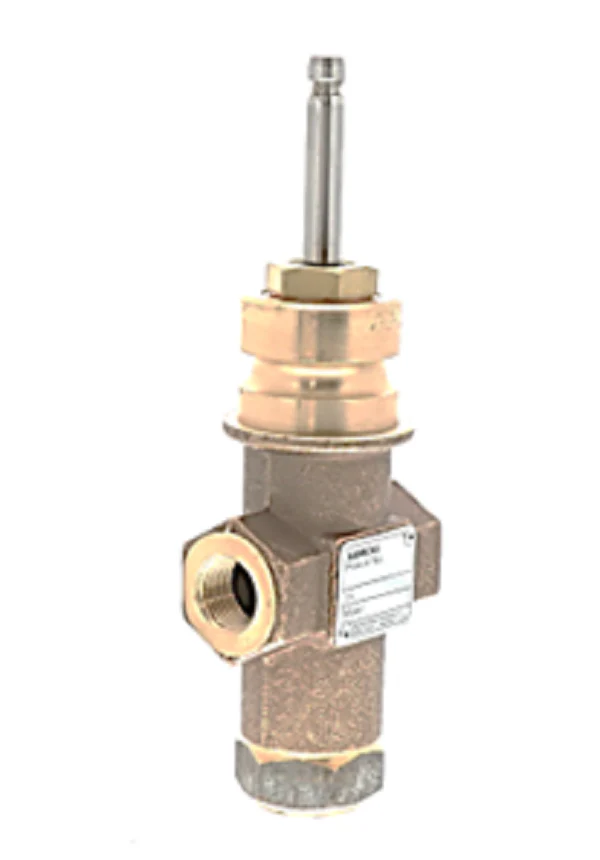

Siemens Building Technology 599-03200 Valve
The Siemens Building Technology 599-03200 is an industrial-grade 1/2 inch 3-way mixing valve engineered for critical hydronic control within commercial HVACR systems. Built with a high-tensile UNS CA 844 bronze body and brass trim, this Flowrite 599 series globe valve is rated for ANSI Class 250 performance. With a 2.5 Cv flow coefficient, it provides precise modulation for hot water, chilled water, and glycol solutions up to 50% concentration. This valve utilizes a direct-coupled universal bonnet for seamless integration with both pneumatic and electronic actuators, supporting a 3/4 inch stroke. The internal assembly features an EPDM O-ring packing and stainless steel stem, ensuring a tight seal with ANSI Class IV leakage (0.01% of Cv) across a temperature range of 20°F to 250°F. Designed for demanding contractor environments, it facilitates linear flow characteristics in normally open ports and equal percentage in normally closed ports, providing stable temperature management for zone control and air handling units.
- High-Pressure Performance: The ANSI Class 250 rating ensures structural integrity in high-head applications.
- Superior Sealing: Features a metal-to-metal seat and EPDM O-ring for reliable Class IV leakage protection.
- Universal Compatibility: The 3/4 inch stroke and Flowrite 599 series bonnet allow for easy field pairing with the best 3-way mixing valve actuators.
- Durable Construction: The bronze body with brass trim prevents corrosion in treated water and glycol systems.
- Precise Control: A 2.5 Cv flow rate provides the necessary resolution for small-bore piping and individual terminal units.
Common Questions
What is the maximum operating temperature for the 599-03200?
This globe valve is rated to handle media temperatures ranging from 20°F to 250°F, making it suitable for both chilled water and low-pressure steam or hot water loops.
Can I use this for diverting applications?
The 599-03200 is specifically designed as a 3-way mixing valve; for diverting configurations, please verify that the flow direction and internal porting meet the requirements of your specific piping layout.
Which actuators are compatible with this valve body?
It is compatible with Siemens Flowrite pneumatic or electronic actuators that support a 3/4 inch (20mm) stroke, including the EA, SKD, and SQX series.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
