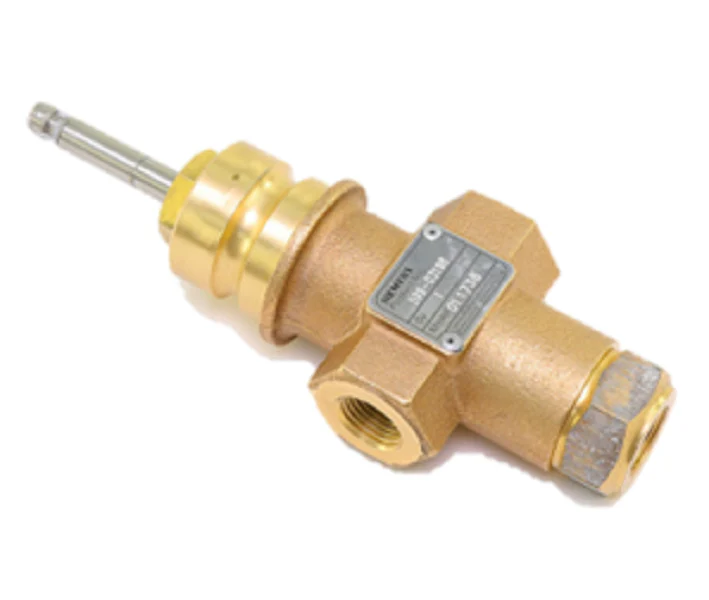

Siemens Building Technology 599-03198 Valve
The Siemens Building Technology 599-03198 is a high-performance Flowrite 599 Series globe valve designed for accurate three-way mixing applications in hydronic systems. Featuring a rugged UNS CA 844 bronze body and brass trim, this 1/2" NPT valve is engineered to handle water or glycol solutions up to 50% concentration. With a flow coefficient (1.0 Cv) and an ANSI Class 250 rating, it provides reliable performance in high-pressure commercial environments. The metal-to-metal seat ensures ANSI Leakage Class IV compliance, while the EPDM O-ring packing and stainless steel stem offer superior durability under demanding thermal cycles. This mixing valve features an equal percentage flow characteristic on the normally closed port and a linear characteristic on the normally open port, ensuring stable control for heating and cooling coils. Its direct-coupled universal bonnet allows for seamless integration with a wide variety of pneumatic or electronic actuators, making it a versatile choice for field-level HVAC maintenance and system upgrades.
Key Benefits- Precision Control: High rangeability (>100:1) and 1.0 Cv rating allow for fine-tuned temperature regulation in small-bore piping systems.
- Industrial-Grade Materials: The bronze body and 303 stainless steel stem resist corrosion and mechanical wear in hydronic applications.
- Broad Temperature Range: Rated for media temperatures from 20°F to 250°F, supporting both chilled water and hot water loops.
- Reliable Sealing: Features a Class IV leakage rate (0.01% of Cv) to prevent energy loss and ghost flow during off-cycles.
- Flexible Actuation: The direct-coupled bonnet simplifies the mounting of Siemens OpenAir or Flowrite actuators without complex linkages.
Is the 599-03198 compatible with glycol?
Yes, this valve is designed to handle water and water-antifreeze solutions with up to a 50% glycol mixture, provided the temperature remains within the 20°F to 250°F range.
Can I use this valve for diverting applications?
This specific model is a 3-way mixing valve. For diverting applications (one inlet to two outlets), a dedicated diverting valve or a specifically configured 3-way ball valve alternative should be used to ensure the flow doesn't slam the plug against the seat.
What actuators fit the 599-03198?
This valve is compatible with 3/4-inch (20 mm) stroke Siemens actuators. Commonly used electronic models include the SAX, SKD, and SKB series, as well as several 4-inch and 8-inch pneumatic actuators.
