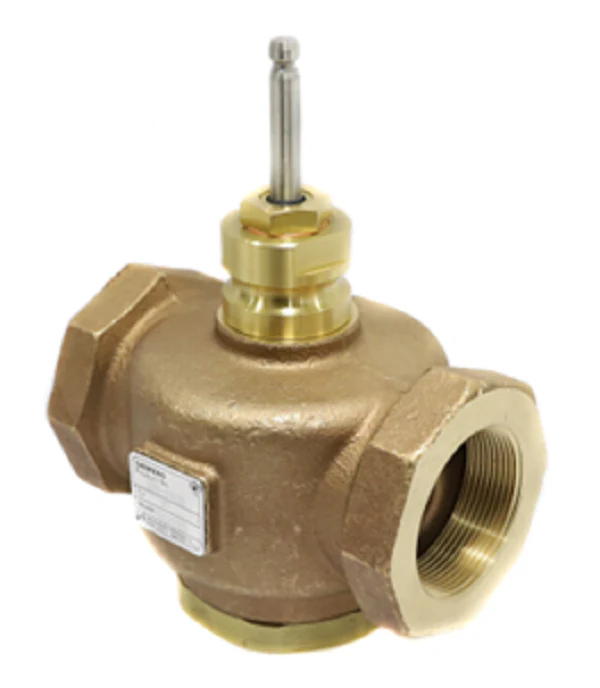

Siemens Building Technology 599-03188 Valve
The Siemens Building Technology 599-03188 is a heavy-duty 2-inch globe valve engineered for precision flow control in commercial HVACR systems. This 2-way normally closed valve features a robust bronze body (UNS CA 844) and brass trim, making it a reliable choice for managing saturated steam, hot water, and chilled water applications. With a 40 Cv equal percentage flow characteristic, it ensures stable modulation and linear heat output across a wide range of load conditions. Designed for high-performance integration, this NPT threaded valve utilizes a direct-coupled universal bonnet, allowing for seamless pairing with pneumatic or electronic actuators such as the Siemens SKD or Flowrite series without specialized tools.
Built to an ANSI Class 250 pressure rating, the 599-03188 globe valve provides a Class IV leakage rating, maintaining a tight 0.01% of Cv seal to prevent energy loss. Its Equal Percentage curve is specifically optimized for heat exchangers and coil control where terminal Unit temperature consistency is critical. The high rangeability of over 100:1 ensures that even at low-demand periods, your building automation system maintains granular control without the "hunting" common in lower-quality iron valves. For contractors, the cartridge-type packing and stainless steel stem offer long-term serviceability in demanding mechanical rooms.
Key Benefits
- Precision Modulation: The equal percentage flow design matches the non-linear heat transfer characteristics of coils for superior temperature stability.
- Industrial Durability: ANSI 250 bronze body construction withstands higher static pressures and temperatures up to 250°F.
- Reduced Maintenance: Features a direct-coupled bonnet and field-replaceable cartridge packing to minimize downtime during service intervals.
- High Close-Off Reliability: Engineered to provide a normally closed fail-safe position with Class IV leakage protection.
Common Questions
Which actuators are compatible with the Siemens 599-03188?
This valve is designed for use with Siemens Flowrite 599 Series electronic (SKD, SKB, SKC) and pneumatic (8-inch, 12-inch) actuators with a 3/4-inch stroke. The universal bonnet allows for direct-couple mounting.
Can this valve be used for steam applications?
Yes, the 599-03188 is rated for saturated steam up to 15 psi and 250°F. Ensure you are using the appropriate packing for high-temperature steam service if exceeding standard water limits.
What is the advantage of the 40 Cv rating in a 2-inch pipe?
A 40 Cv rating provides a high flow capacity while maintaining the narrow control required for 2-inch line sizes, preventing excessive pressure drops across the valve during peak demand.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
