Siemens Building Technology 599-03187 Valve

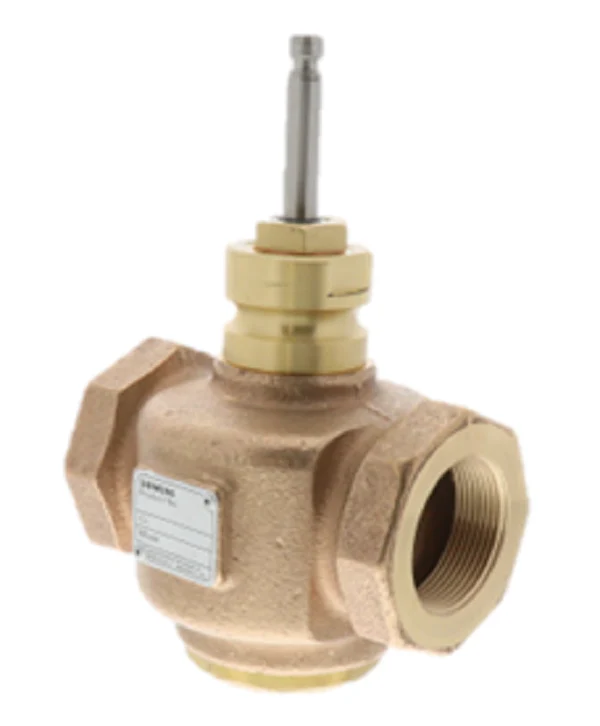

The Siemens 599-03187 is a heavy-duty 1 1/2 inch 2-way globe valve engineered for precision flow control in commercial HVACR systems. Built with a rugged UNS CA 844 bronze body and brass trim, this normally closed (NC) valve is designed to handle high-demand applications including saturated steam, hot water, and chilled water with anti-freeze. Featuring an equal percentage flow characteristic and a 25 Cv capacity, it ensures stable modulating control even under fluctuating pressure conditions. For contractors, the direct-coupled universal bonnet simplifies the mounting of pneumatic or electronic Siemens Flowrite actuators, such as the SKD series. This ANSI Class 250 rated valve utilizes NPT threaded connections and a stainless steel stem to provide reliable service and high rangeability (greater than 100:1) for critical building automation sequences.
Key Benefits:- Precision Control: The equal percentage flow characteristic prevents hunting and provides stable temperature regulation in modulating service.
- High Pressure Durability: Rated for ANSI Class 250, making it suitable for high-rise hydronic systems and steam applications up to 250°F.
- Reliable Sealing: Features a metal-to-metal seat and EPDM O-ring packing to maintain an ANSI Leakage Class IV rating (0.01% of Cv).
- Contractor-Friendly Installation: The 1.5" NPT female-to-female connections and universal bonnet allow for fast field assembly with various 599 series actuators.
What is the maximum close-off pressure for this valve?
The close-off pressure depends on the specific actuator paired with the 599-03187. Typical 4-inch pneumatic actuators provide a 25 psi close-off, while higher-force electronic actuators can reach greater differentials. Always verify your actuator’s force rating against the system’s maximum head pressure.
Can this valve be used for steam applications?
Yes, the Siemens 599-03187 is rated for saturated steam. It is essential to ensure that the selected actuator and linkage are also rated for the higher ambient temperatures associated with steam globe valve installations.
Does the valve include the actuator?
This part number refers to the valve body only. You must select a compatible Siemens Flowrite actuator separately based on your control signal requirements (pneumatic, 0-10V, or 4-20mA).
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $341.76
-65%$341.76
$119.62Siemens Building Technology 599-03187 Valve
The Siemens 599-03187 is a heavy-duty 1 1/2 inch 2-way globe valve engineered for precision flow control in commercial HVACR systems. Built with a rugged UNS CA 844 bronze body and brass trim, this normally closed (NC) valve is designed to handle high-demand applications including saturated steam, hot water, and chilled water with anti-freeze. Featuring an equal percentage flow characteristic and a 25 Cv capacity, it ensures stable modulating control even under fluctuating pressure conditions. For contractors, the direct-coupled universal bonnet simplifies the mounting of pneumatic or electronic Siemens Flowrite actuators, such as the SKD series. This ANSI Class 250 rated valve utilizes NPT threaded connections and a stainless steel stem to provide reliable service and high rangeability (greater than 100:1) for critical building automation sequences.
Key Benefits:- Precision Control: The equal percentage flow characteristic prevents hunting and provides stable temperature regulation in modulating service.
- High Pressure Durability: Rated for ANSI Class 250, making it suitable for high-rise hydronic systems and steam applications up to 250°F.
- Reliable Sealing: Features a metal-to-metal seat and EPDM O-ring packing to maintain an ANSI Leakage Class IV rating (0.01% of Cv).
- Contractor-Friendly Installation: The 1.5" NPT female-to-female connections and universal bonnet allow for fast field assembly with various 599 series actuators.
What is the maximum close-off pressure for this valve?
The close-off pressure depends on the specific actuator paired with the 599-03187. Typical 4-inch pneumatic actuators provide a 25 psi close-off, while higher-force electronic actuators can reach greater differentials. Always verify your actuator’s force rating against the system’s maximum head pressure.
Can this valve be used for steam applications?
Yes, the Siemens 599-03187 is rated for saturated steam. It is essential to ensure that the selected actuator and linkage are also rated for the higher ambient temperatures associated with steam globe valve installations.
Does the valve include the actuator?
This part number refers to the valve body only. You must select a compatible Siemens Flowrite actuator separately based on your control signal requirements (pneumatic, 0-10V, or 4-20mA).
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
