Siemens Building Technology 599-03168 Valve

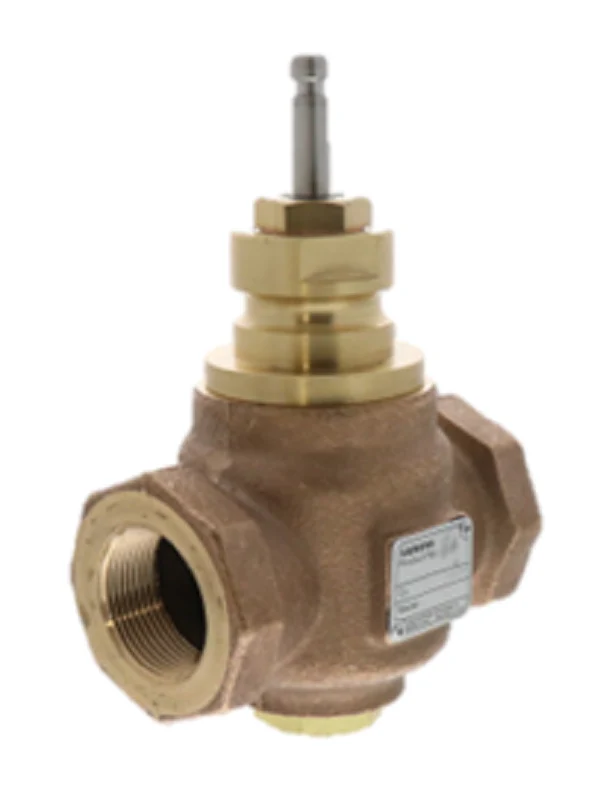

The Siemens 599-03168 is a professional-grade Flowrite 599 Series globe valve designed for high-performance throttling in commercial hydronic and steam systems. This 1 1/4 inch NPT 2-way valve features a normally open (NO) configuration and is engineered with a 16 Cv equal percentage flow characteristic, ensuring precise modulation and consistent heat transfer across the coil. Constructed with a heavy-duty bronze body and brass trim, it is rated for ANSI Class 250 service, making it compatible with a wide range of medium-temperature hot water, chilled water, and saturated steam applications.
Built for efficiency in the field, the 599-03168 utilizes a direct-coupled universal bonnet that allows for tool-free installation of any Siemens Flowrite actuator with a 3/4-inch stroke. The metal-to-metal seat provides dependable ANSI Class IV leakage protection, while the cartridge-type EPDM O-ring packing ensures a reliable seal under varying thermal loads. Whether you are performing a retrofit or a new installation, this globe valve body provides the durability and control accuracy required for modern HVACR automation and building management systems.
Key Benefits- Precise Flow Control: The equal percentage flow characteristic optimizes coil performance for consistent temperature regulation.
- Rugged Construction: Durable bronze body and brass trim provide long-term resistance to corrosion in demanding mechanical rooms.
- Universal Compatibility: Features a universal bonnet for seamless integration with Siemens pneumatic or electronic actuators.
- High Pressure Rating: ANSI Class 250 rating allows for use in high-rise and large-scale industrial hydronic loops.
- Maintenance Friendly: Utilizing a cartridge-type packing allows for easier field servicing without total system teardowns.
Is the Siemens 599-03168 suitable for steam service?
Yes, this 2-way globe valve is rated for saturated steam applications up to 100 psig when paired with the appropriate high-temperature actuator and packing kits.
What actuators are compatible with the 1 1/4" Flowrite body?
This valve is designed to work with any Siemens Flowrite series actuator (electronic or pneumatic) that features a 3/4-inch (20 mm) stroke.
Can I install this valve in a normally closed application?
No, the 599-03168 is a normally open valve body. For normally closed operation, you would need to specify the 599-03186 counterpart.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
