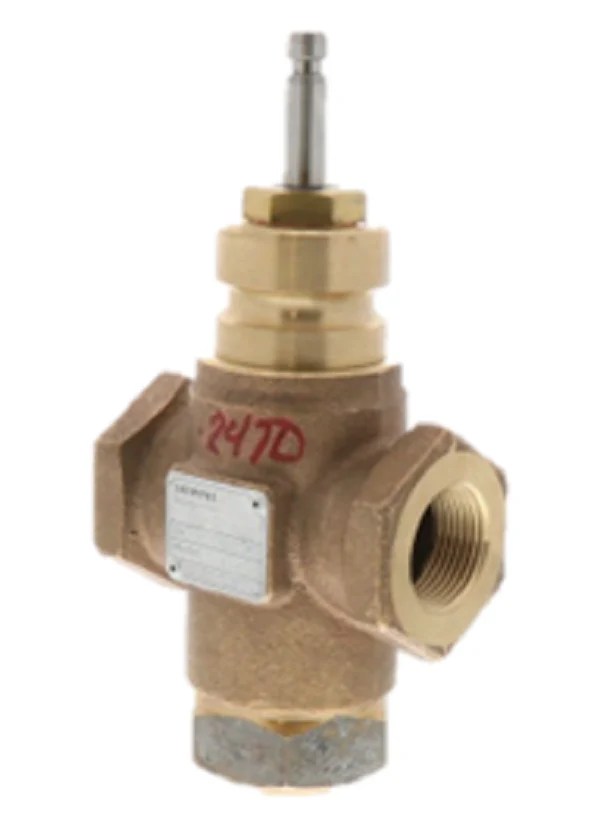

Siemens Building Technology 599-03149 Valve
The Siemens Building Technology 599-03149 is a professional-grade Flowrite 599 series globe valve engineered specifically for high-demand hydronic HVAC systems. This 3-way mixing valve features a 1-inch NPT internal thread connection and a 10 Cv flow capacity, making it an essential component for technicians balancing heating and cooling loops in commercial mechanical rooms. Built with a rugged UNS CA 844 bronze body and stainless steel trim, the 599-03149 provides exceptional resistance to corrosion and scaling, ensuring long-term seat integrity even in systems using aggressive water treatments or glycol-based antifreeze mixtures.
Designed for versatile field integration, this 1" mixing valve is fully compatible with Siemens pneumatic and electronic actuators, utilizing a direct-coupled universal bonnet for simplified mounting. With an ANSI Class 250 pressure rating and Class IV leakage performance, it maintains precise control over a wide temperature range of 20°F to 250°F. The stroke-globe design provides linear flow characteristics and a rangeability exceeding 100:1, allowing for stable modulation in air handlers, chillers, and boiler bypass applications.
Key Technical Benefits
- Enhanced Durability: The stainless steel stem (ASTM A582 Type 303) and stainless steel trim prevent premature wear in high-cycle mixing applications.
- High Pressure Capacity: Rated for ANSI Class 250, providing a high close-off rating suitable for multi-story commercial hydronic builds.
- Precision Modulation: Features a 3/4-inch (20 mm) stroke and high rangeability for accurate temperature control in critical HVAC zones.
- Reliable Sealing: Equipped with an EPDM O-ring packing and metal-to-metal seating to maintain Class IV leakage standards.
- Actuator Compatibility: Designed for seamless pairing with Siemens Flowrite actuators, reducing installation time and ensuring proper signal response.
Common Questions
Can this valve be used for diverting applications?
No, the 599-03149 is specifically piped as a 3-way mixing valve. For diverting configurations, a dedicated diverting valve body should be specified to prevent water hammer and premature packing failure.
What media is compatible with the 599-03149?
This valve is optimized for water or water-glycol mixtures up to 50%. It is commonly used in closed-loop hydronic systems for both heating and chilled water service.
Does it require special tools for actuator mounting?
The direct-coupled universal bonnet allows for straightforward attachment of compatible Siemens electronic or pneumatic actuators without complex linkage adjustments, though standard technician hand tools are required for the NPT pipe connections.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
