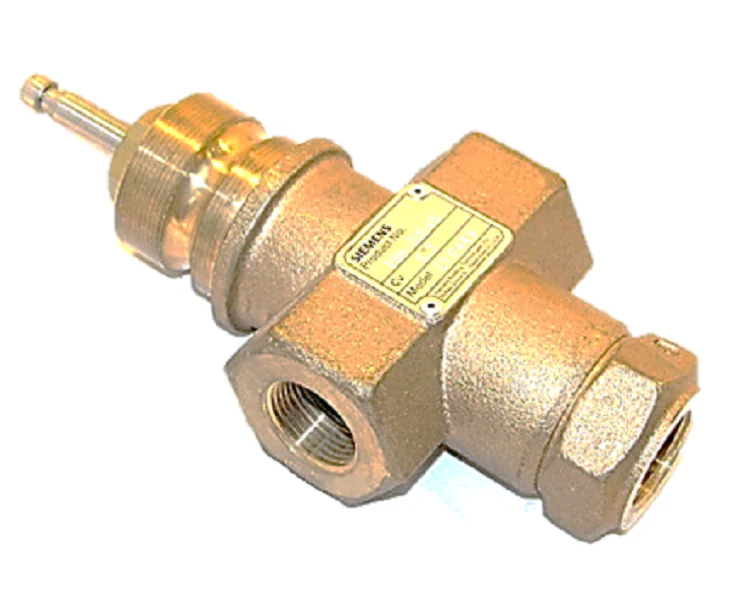

Siemens Building Technology 599-03148 Valve
The Siemens 599-03148 is a high-performance 3-way mixing valve from the Flowrite 599 Series, engineered for precise hydronic control in demanding HVACR environments. Built with a rugged UNS CA 844 bronze body and stainless steel trim, this 3/4 inch globe valve provides superior durability against corrosion and wear in open or closed-loop systems. With a 6.3 Cv rating and a Class IV leakage specification, it ensures tight close-off and optimal energy efficiency. The ANSI 250 pressure rating and a temperature range of 20°F to 250°F make it a versatile choice for water and up to 50% glycol solutions. This valve features a 3/4" NPT connection and a stainless steel stem with an EPDM O-ring packing, ensuring a reliable seal. Designed for universal compatibility, it seamlessly accepts any 3/4" stroke pneumatic or electronic actuator, providing a flexible solution for mission-critical Siemens building technology installations.
Key Benefits- Enhanced Durability: The stainless steel trim and stem offer superior resistance to pitting and scaling compared to standard brass internals.
- Precision Control: High 100:1 rangeability ensures stable temperature modulation even at low flow conditions.
- Leakage Prevention: Rated for ANSI Class IV (0.01% of Cv), minimizing thermal bypass and reducing system energy loss.
- Universal Compatibility: Standard 3/4 inch stroke design allows for direct mounting of various Siemens Flowrite actuators.
What is the maximum glycol concentration allowed for this valve?
The Siemens 599-03148 is rated for water and water-glycol solutions with a concentration of up to 50%.
Can this valve be used for steam applications?
While the bronze body is robust, this specific 3-way mixing valve configuration is primarily designed for liquid media. For high-pressure steam, verify the packing and trim specifications against specific 2-way steam-rated models.
What actuators are compatible with the 599-03148?
This valve is designed to pair with Siemens 3/4-inch stroke actuators, including pneumatic or electronic versions from the Flowrite series using a direct-coupled universal bonnet.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
