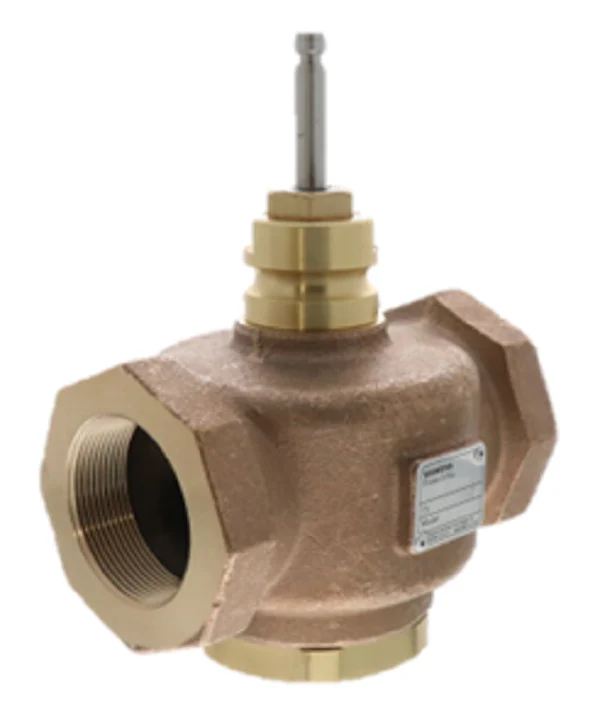

Siemens Building Technology 599-03134 Valve
The Siemens 599-03134 is a professional-grade 2-inch pneumatic/electronic globe control valve body built for high-demand hydronic and steam applications. Designed with a 2-way normally closed configuration, this valve features a 40 Cv capacity with an equal percentage flow characteristic, ensuring precise throttling and linear heat output when managed by compatible actuators. The heavy-duty bronze body (UNS CA 844) and stainless steel trim provide superior resistance against erosion and scale buildup, making it suitable for water, 50% glycol solutions, and saturated steam up to 100 psig. With a 3/4-inch stroke and ANSI Class 250 rating, this NPT threaded valve offers high rangeability of 100:1 and Class IV leakage protection. For contractors installing HVAC control valves, this Flowrite 599 series component ensures reliable field performance and straightforward maintenance via its replaceable cartridge-type packing.
Key Benefits- Enhanced Durability: The stainless steel trim and stem resist corrosion in high-velocity steam and water systems.
- Precise Modulation: Features an equal percentage flow curve, critical for maintaining stable discharge temperatures in heat exchangers.
- Operational Reliability: Rated for ANSI Class IV leakage, ensuring minimal energy loss when the valve is in the closed position.
- Universal Compatibility: The direct-coupled bonnet accepts a wide range of Siemens Flowrite pneumatic or electronic actuators with a 20mm stroke.
What is the maximum temperature rating for this valve?
This unit is designed for media temperatures ranging from 20°F to 250°F for standard duty, though specific packing options for steam may allow for different tolerances.
Is the Siemens 599-03134 suitable for steam applications?
Yes, its stainless steel trim and bronze construction allow for use in saturated steam applications up to 100 psig inlet pressure.
What actuators are compatible with this globe valve?
It is designed to work with any Siemens 3/4-inch stroke electronic or pneumatic actuator, including the SKB, SKD, or 8-inch pneumatic series.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
