Siemens Building Technology 599-03133 Valve

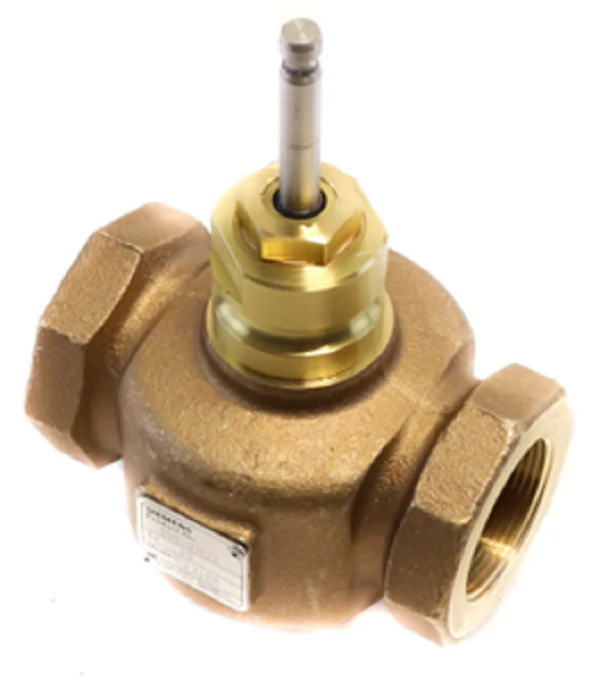

The Siemens Building Technology 599-03133 is a heavy-duty 2-way normally closed globe valve engineered for precise throttling and reliable isolation in high-demand mechanical systems. Built with a rugged bronze body and high-grade stainless steel trim, this 1 1/2 inch NPT globe valve is designed to withstand the rigors of industrial and commercial HVAC control systems. With a 25 Cv equal percentage flow characteristic, it provides the linear control necessary for maintaining tight temperature tolerances in hydronic heating and cooling loops.
As part of the Siemens Flowrite 599 series, this valve features an ANSI Class 250 pressure rating, ensuring high-performance operation in pressurized water and saturated steam applications up to 250°F. The stainless steel trim offers superior resistance to erosion and corrosion compared to standard brass options, making it the preferred choice for contractors installing commercial HVAC valves in open loops or systems with aggressive water chemistry. This valve is a valve body only assembly, ready for integration with a variety of Siemens valve actuators including pneumatic or electronic models with a 3/4-inch stroke.
Key Benefits for the Job Site:- Enhanced Durability: The stainless steel trim prevents premature seat wear and wire-drawing, significantly extending the service life in high-pressure steam and water systems.
- High Precision Flow Control: Featuring a 25 Cv equal percentage plug, this valve ensures stable modulating control and prevents hunting in the control loop.
- ANSI Class IV Leakage: Tight shut-off performance (0.01% of Cv) minimizes energy loss and prevents ghost-flow when the system is in the normally closed position.
- Contractor-Friendly Installation: Standard 1 1/2 inch NPT female-to-female connections allow for seamless integration into existing threaded piping without specialized adapters.
What actuators are compatible with the Siemens 599-03133?
This Flowrite series globe valve is designed to work with any Siemens pneumatic or electronic actuator featuring a 3/4-inch (20mm) stroke, such as the SKB, SKC, or SKD series electro-hydraulic actuators.
Can this valve be used for steam applications?
Yes, the ANSI 250 rating and stainless steel trim make this unit highly effective for saturated steam applications, specifically for throttling supply to heat exchangers or terminal units.
Is the packing replaceable?
This valve utilizes a cartridge-type packing design, which allows technicians to perform rapid HVAC valve maintenance or repacking without removing the valve body from the piping system.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
