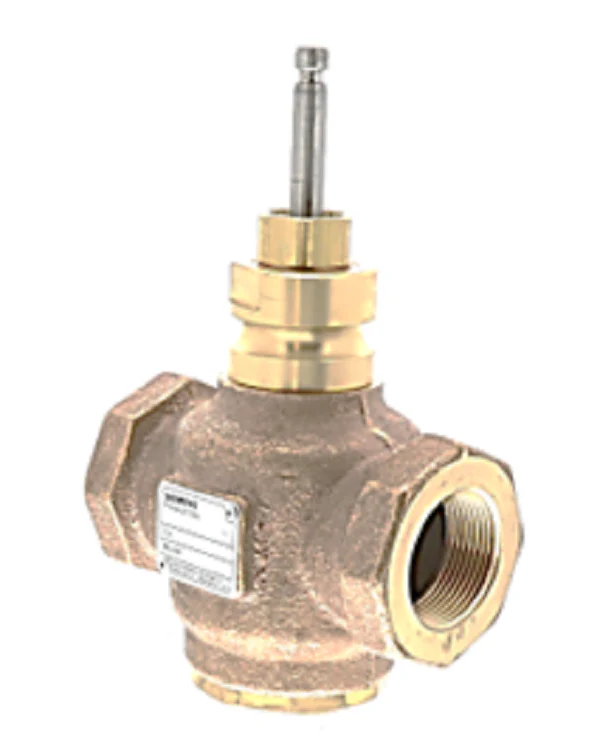

Siemens Building Technology 599-03078 Valve
The Siemens 599-03078 is a high-performance 1-1/4" NPT 2-way normally closed globe valve engineered for precise modulation in commercial HVAC and industrial steam applications. Built with a heavy-duty UNS CA 844 bronze body and 316 stainless steel trim, this valve is designed to withstand the rigors of saturated steam and high-temperature water systems up to 337°F. With a 16 Cv flow coefficient and a linear flow characteristic, it provides stable control across a wide range of loads, effectively reducing hunting in AHUs and reheat coils. The ANSI Class 250 rating and Class IV leakage (0.01% of Cv) ensure reliable shut-off and long-term performance under pressure. Contractors appreciate the direct-coupled universal bonnet, which allows for fast, tool-free installation of Flowrite pneumatic or electronic actuators. High-temperature cartridge-type packing simplifies field service, making this Siemens 599-03078 globe valve a standard choice for technicians prioritizing system stability and durability.
Key Benefits
- Enhanced Durability: The stainless steel trim and bronze body resist corrosion in aggressive steam and chilled water environments.
- Precision Control: A linear flow characteristic ensures consistent performance for normally closed operation in modulation-heavy applications.
- Simplified Installation: Features a direct-coupled universal bonnet that accepts various Siemens actuators without specialized tools.
- High-Temperature Resilience: Equipped with specialized high temperature packing capable of handling media up to 337°F.
- Leakage Prevention: Meets ANSI Class IV standards, ensuring minimal seat leakage and improved system efficiency.
Common Questions
What is the maximum pressure for the Siemens 599-03078 in steam applications?
This valve is rated for saturated steam up to 100 psi and can handle media temperatures up to 337°F, provided it is paired with the appropriate high-temp actuator and packing kit.
Which actuators are compatible with this 1-1/4" globe valve?
The 599-03078 utilizes a 3/4-inch (20 mm) stroke and is compatible with the Flowrite series, including pneumatic actuators like the 8-inch 599-01050 or electro-hydraulic models like the SKB series.
Can I use this valve for chilled water systems?
Yes, the bronze body and stainless steel internals are ideal for chilled water, hot water, and water with anti-freeze, offering a rangeability over 100:1 for precise thermal management.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $429.76
-65%$429.76
$150.42Siemens Building Technology 599-03078 Valve
The Siemens 599-03078 is a high-performance 1-1/4" NPT 2-way normally closed globe valve engineered for precise modulation in commercial HVAC and industrial steam applications. Built with a heavy-duty UNS CA 844 bronze body and 316 stainless steel trim, this valve is designed to withstand the rigors of saturated steam and high-temperature water systems up to 337°F. With a 16 Cv flow coefficient and a linear flow characteristic, it provides stable control across a wide range of loads, effectively reducing hunting in AHUs and reheat coils. The ANSI Class 250 rating and Class IV leakage (0.01% of Cv) ensure reliable shut-off and long-term performance under pressure. Contractors appreciate the direct-coupled universal bonnet, which allows for fast, tool-free installation of Flowrite pneumatic or electronic actuators. High-temperature cartridge-type packing simplifies field service, making this Siemens 599-03078 globe valve a standard choice for technicians prioritizing system stability and durability.
Key Benefits
- Enhanced Durability: The stainless steel trim and bronze body resist corrosion in aggressive steam and chilled water environments.
- Precision Control: A linear flow characteristic ensures consistent performance for normally closed operation in modulation-heavy applications.
- Simplified Installation: Features a direct-coupled universal bonnet that accepts various Siemens actuators without specialized tools.
- High-Temperature Resilience: Equipped with specialized high temperature packing capable of handling media up to 337°F.
- Leakage Prevention: Meets ANSI Class IV standards, ensuring minimal seat leakage and improved system efficiency.
Common Questions
What is the maximum pressure for the Siemens 599-03078 in steam applications?
This valve is rated for saturated steam up to 100 psi and can handle media temperatures up to 337°F, provided it is paired with the appropriate high-temp actuator and packing kit.
Which actuators are compatible with this 1-1/4" globe valve?
The 599-03078 utilizes a 3/4-inch (20 mm) stroke and is compatible with the Flowrite series, including pneumatic actuators like the 8-inch 599-01050 or electro-hydraulic models like the SKB series.
Can I use this valve for chilled water systems?
Yes, the bronze body and stainless steel internals are ideal for chilled water, hot water, and water with anti-freeze, offering a rangeability over 100:1 for precise thermal management.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
