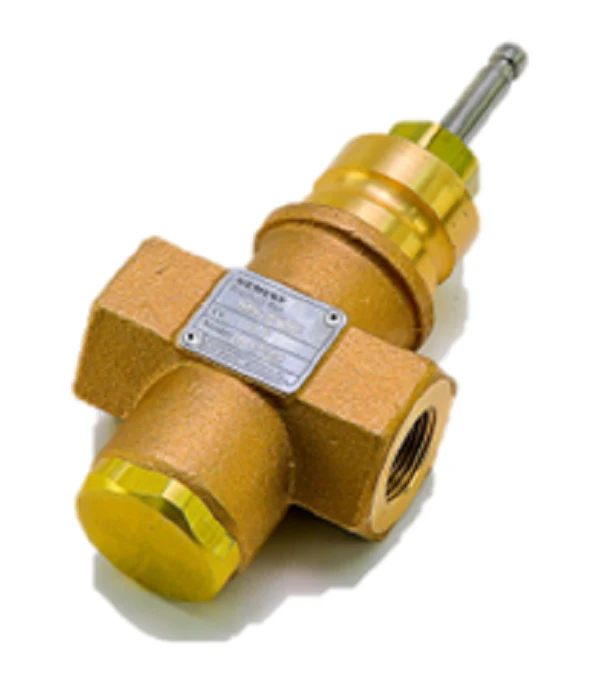

Siemens Building Technology 599-03076 Valve
The Siemens Building Technology 599-03076 Valve is a robust, 3/4-inch 2-way normally closed globe valve designed for high-demand HVACR hydronic and steam applications. Built with a UNS CA 844 bronze body and stainless steel trim, this valve is engineered to handle saturated steam, hot water, and up to 50% glycol solutions with high durability. It features a 6.3 Cv linear flow characteristic and a 3/4-inch (20 mm) stroke, making it compatible with a wide range of Flowrite pneumatic and electronic actuators. The high temperature packing allows for an extended operating range up to 337°F (170°C), ensuring reliable performance in harsh thermal environments. As an ANSI Class 250 rated component, it provides tight shut-off with ANSI Class IV leakage (0.01% of Cv), ensuring system efficiency and precise control. The direct-coupled universal bonnet simplifies field installation and maintenance, while the cartridge-type packing is fully serviceable to extend the life of the valve assembly.
Key Benefits- Extreme Temperature Resilience: Equipped with specialized high temperature packing rated for applications up to 337°F, ideal for steam and high-temp hot water systems.
- Precision Fluid Control: Features a 6.3 Cv linear flow and 100:1 rangeability, providing stable modulation for 3/4 inch NPT piping.
- Heavy-Duty Construction: The bronze body and stainless steel trim prevent premature wear and corrosion in aggressive hydronic environments.
- Actuator Versatility: Designed with a universal bonnet to accept various pneumatic or electronic actuators without the need for specialized tools.
- Low Leakage Rating: Maintains ANSI Class IV standards, significantly reducing energy loss in your mechanical systems.
What media can the Siemens 599-03076 handle?
This valve is specifically designed for saturated steam, water, and water-antifreeze mixtures with a glycol concentration of up to 50%.
Is the packing on this globe valve replaceable?
Yes, the 599-03076 utilizes a cartridge-type packing, which allows for straightforward field service and maintenance to ensure long-term seal integrity.
Which actuators are compatible with this 3/4-inch bronze valve?
It is compatible with Siemens Flowrite series pneumatic and electronic actuators that require a 3/4-inch stroke, offering flexibility for both legacy and modern control systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
