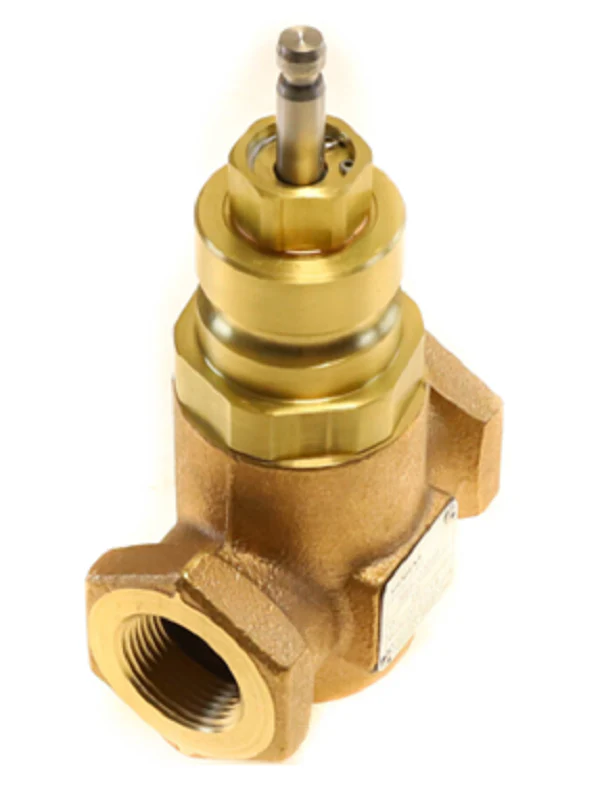

Siemens Building Technology 599-03059 Valve
The Siemens 599-03059 is a heavy-duty 1-inch 2-way globe valve engineered for high-demand commercial HVAC and steam applications. Designed with a Normally Open (N/O) configuration and linear flow characteristics, this Flowrite 599 series valve body provides precise throttling and reliable shutoff for saturated steam, water, and up to 50% water-glycol solutions. Built to ANSI Class 250 standards, the bronze body (UNS CA 844) is paired with stainless steel trim to resist erosion and ensure long-term durability in modulating service. This specific model features high-temperature packing, rated for media temperatures reaching 337°F, making it suitable for high-pressure steam up to 100 psi.
The universal bonnet design allows for a direct-coupled, no-tool installation with Flowrite pneumatic or electronic actuators featuring a 3/4-inch stroke. With a 10 Cv flow capacity and a rangeability exceeding 100:1, the 599-03059 offers superior control stability without a dead band. The ANSI Class IV leakage rating (0.01% of Cv) ensures minimal energy loss, while the cartridge-type packing facilitates easy field servicing and repacking without removing the valve from the 1" NPT piping.
Key Benefits- Maximum Temperature Resilience: Equipped with high-temperature packing to handle saturated steam and hot water up to 337°F.
- Corrosion-Resistant Trim: Features stainless steel trim (ASTM A582 Type 303) for superior resistance to cavitation and chemical wear compared to brass alternatives.
- Efficient Field Service: The cartridge-type packing and universal bonnet design streamline maintenance and actuator replacement, reducing labor costs.
- High Close-Off Reliability: Engineered to provide ANSI Class IV tight shutoff, ensuring energy efficiency in rigorous hydronic applications.
- Precise Modulation: Linear flow characteristic provides consistent control throughout the 3/4" stroke for stable system performance.
What actuators are compatible with the 599-03059 valve?
This valve is designed for use with any Siemens Flowrite pneumatic or electronic actuator that utilizes a 3/4-inch (20 mm) stroke, including the SKB, SKC, and SKD series. The universal bonnet allows for direct-coupled mounting without additional tools.
Can this valve be used for chilled water systems?
Yes, the 599-03059 is rated for a medium temperature range of 20°F to 337°F. For applications involving fluids below 32°F, it is recommended to use a stem heater to prevent ice crystal formation and protect the packing.
Is this valve suitable for modulating steam control?
Absolutely. While brass trim is often limited to 25 psi differential pressure for liquids, the stainless steel trim on this model allows for modulating differential pressures up to 50 psi for both steam and liquid service.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
