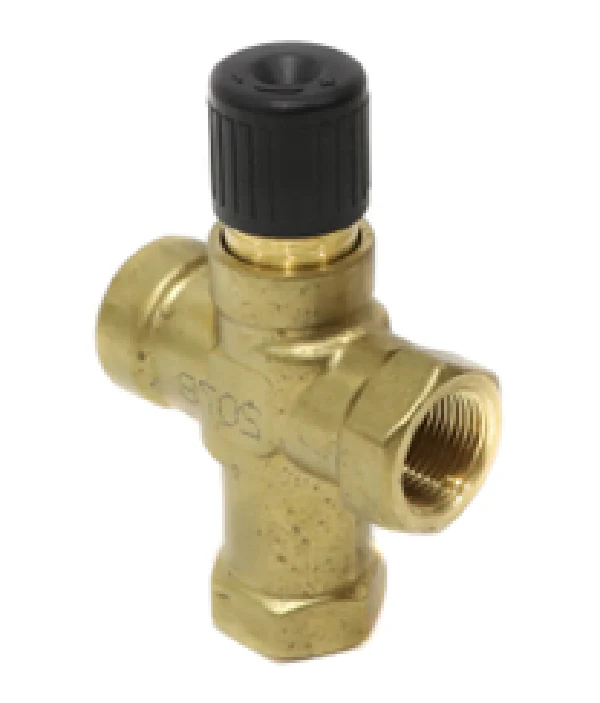

Siemens Building Technology 599-02078 Valve
The Siemens Building Technology 599-02078 is a high-performance 3-way mixing valve from the Powermite MT Series, engineered for precise control in terminal unit applications. Featuring a 3/4" NPT connection and a 6.3 Cv flow coefficient, this globe valve is constructed with a rugged forged brass body and stainless steel trim to ensure long-term reliability in demanding hydronic systems. Designed for mixing hot or chilled water and glycol solutions up to 50% concentration, it maintains a linear flow characteristic for stable temperature regulation across its 35°F to 250°F operating range.
For professional contractors, the 599-02078 offers a direct-coupled universal bonnet, allowing for seamless integration with MT Series electronic or pneumatic actuators. This ANSI Class 250 valve body is built for an 8-13 psi spring range and supports a maximum close-off pressure of 50 psi. The internal thread (F x F) architecture ensures a secure fit within standard piping layouts, while the ANSI Leakage Class IV rating guarantees minimal seat leakage, optimizing energy efficiency in HVAC control systems.
Key Benefits- Exceptional Durability: The stainless steel trim prevents premature wear and erosion, even in high-cycle mixing valve applications.
- Flexible Actuation: Compatible with a wide array of Siemens Powermite actuators (SSA, SSB, SQS, and SSC series) for proportional or floating control.
- Efficient Installation: The direct-coupled design eliminates the need for specialized tools during actuator mounting, reducing labor time on the job site.
- Precise Modulation: Engineered with a 6.3 Cv rating to provide accurate fluid mixing in terminal units, enhancing occupant comfort and system stability.
What actuators are compatible with the Siemens 599-02078?
This valve is designed to work with any MT Series actuator, including the SFA/SFP, SSA/SSP, and SSC electronic series, as well as Powermite pneumatic actuators with a 7/32-inch stroke.
Can this valve be used for diverting applications?
The 599-02078 is specifically a mixing valve. For diverting applications, you must select the appropriate 3-way diverting model to avoid noise and potential water hammer issues.
Is this valve suitable for steam systems?
No, this unit is rated for water and water-glycol mixtures up to 250°F and is not intended for steam service.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
