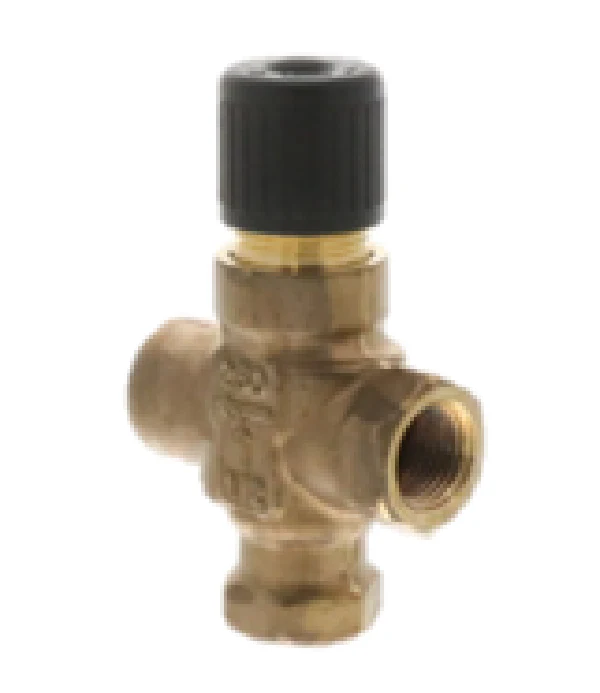

Siemens Building Technology 599-02072 Valve
The Siemens Building Technology 599-02072 is a precision-engineered 1/2 inch 3-way mixing valve designed for demanding terminal unit applications. As part of the high-performance Powermite 599 MT Series, this valve features a 0.4 Cv rating and a forged brass body with stainless steel trim, ensuring long-term durability and resistance to corrosion in closed-loop hydronic systems. The linear flow characteristic provides stable control for mixing hot or chilled water and glycol solutions up to 50% concentration. This mixing globe valve is built to ANSI Class 250 standards, capable of handling medium temperatures from 35°F to 250°F. For a secure, leak-free connection, it utilizes NPT threaded end connections. This valve body is engineered for a 7/32-inch (5.5 mm) stroke and is fully compatible with electronic valve actuators such as the SAS or SSC series, as well as pneumatic actuators, allowing for a direct-coupled universal bonnet installation without specialized tools.
Key Benefits- Stainless Steel Trim: Enhanced protection against scaling and erosion compared to standard brass internals.
- Compact MT Series Design: Ideal for tight mechanical spaces in fan coil units, baseboard radiation, and reheat coils.
- ANSI Class IV Leakage: Tight close-off (0.01% of Cv) prevents energy waste and ghost flow in inactive zones.
- Direct-Coupled Assembly: Simplifies field installation by allowing actuators to be mounted directly to the universal bonnet.
- High Pressure Rating: Robust forged brass construction rated for ANSI 250 environments.
What is the difference between a mixing and diverting valve in this series?
The 599-02072 is specifically a mixing valve, meaning it has two inlets and one outlet to blend different water temperatures. It should not be piped in a diverting configuration (one inlet, two outlets) as the internal flow dynamics are optimized for mixing applications.
Which actuators are compatible with this 0.4 Cv valve body?
This valve is designed for any MT Series actuator with a 5.5 mm stroke, including the SSC electronic actuators and SAS electromotoric actuators. It also interfaces with 2-inch pneumatic actuators providing at least 67 lb of force.
Can this valve be used with steam?
No, the Siemens 599-02072 is rated for water and water-glycol mixtures. For steam applications, you would typically look for valves with specific steam-rated seals and higher temperature trim packages.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
