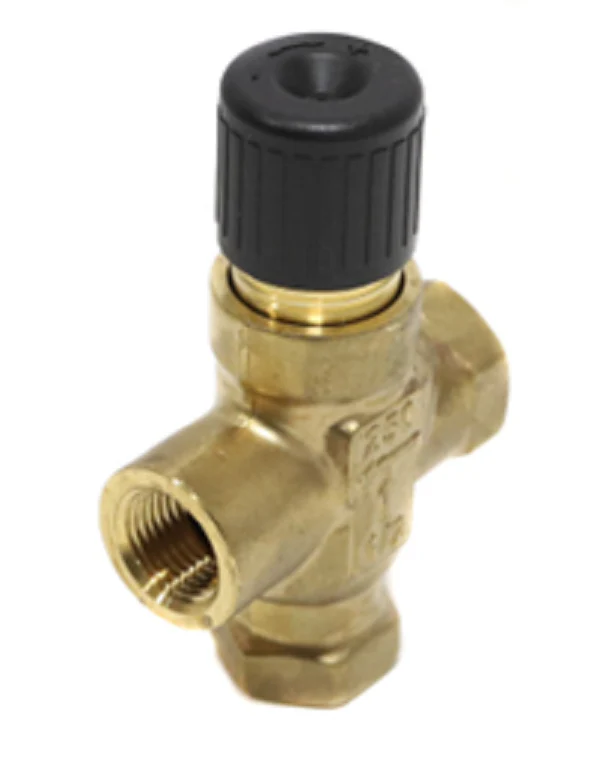

Siemens Building Technology 599-02069 Valve
The Siemens Building Technology 599-02069 is a heavy-duty 1/2 inch 3-way mixing valve engineered for precision control in terminal unit applications. Featuring a 4.0 Cv rating and a linear flow characteristic, this MT Series globe valve is built with a forged brass body and durable brass trim to handle high-demand hydronic systems. Designed for ANSI Class 250 pressure requirements, this valve manages hot or chilled water and glycol solutions up to 50% concentration with ease. The direct-coupled universal bonnet allows for seamless integration with Siemens electronic actuators or pneumatic equivalents without the need for specialized tools. With a 7/32-inch stroke and NPT female connections, this valve is a standard choice for technicians maintaining fan coil units, reheat coils, and baseboard radiation systems where reliable mixing valve performance and tight ANSI Class IV leakage protection are non-negotiable for system efficiency.
Key Benefits- Universal Compatibility: Interchanges easily with standard Siemens Powermite actuators (SFA, SFP, SSC, and SSP series) for flexible field installation.
- High-Pressure Rating: Rated for ANSI Class 250, ensuring structural integrity in high-static building environments.
- Efficient Installation: Features NPT threaded connections and a tool-free bonnet design to reduce labor time during replacements.
- Precision Mixing: The 4.0 Cv capacity and linear seat provide stable temperature control in 3-port mixing configurations.
What actuators are compatible with the Siemens 599-02069?
This valve body is designed to work with all Siemens MT Series actuators that have a 5.5mm (7/32 inch) stroke, including 24V or 120V electronic and pneumatic models.
Can this valve be used for diverting applications?
The 599-02069 is specifically engineered as a mixing valve; while some technicians attempt to pipe 3-way valves for diverting, optimal seat life and flow control are achieved when used in the intended mixing configuration.
What is the maximum fluid temperature for this brass body valve?
The unit is rated to handle medium temperatures ranging from 35°F up to 250°F, making it suitable for both chilled water and high-temp hydronic heating loops.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
