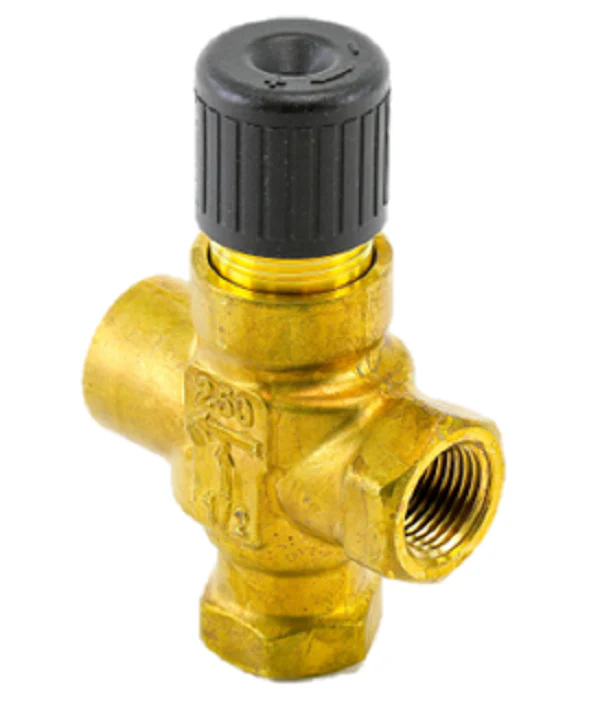

Siemens Building Technology 599-02068 Valve
The Siemens 599-02068 is a professional-grade 3-way mixing globe valve from the Powermite 599 MT Series, engineered for precise flow control in terminal units. Built with a forged brass body and robust brass trim, this 1/2 inch NPT valve features a 2.5 Cv flow coefficient and a linear flow characteristic, making it ideal for managing hot or chilled water and water-glycol solutions up to 50% concentration. Designed to handle medium temperatures ranging from 35°F to 250°F, this ANSI Class 250 rated valve is a staple for contractors working on fan coil units, reheat coils, and induction units. Its direct-coupled universal bonnet allows for seamless, tool-free installation with compatible Siemens MT Series actuators, supporting electronic (proportional or floating) and pneumatic control signals. With a high rangeability of 100:1 and ANSI Leakage Class IV performance, it ensures efficient high-precision regulation for demanding HVACR hydronic systems.
Key Benefits:
- Versatile Actuation: The direct-coupled universal bonnet supports a wide range of electronic and pneumatic actuators without requiring special tools for assembly.
- High Pressure Rating: Rated for ANSI Class 250, ensuring reliable performance in high-pressure terminal unit applications.
- Precision Control: Features a linear flow characteristic and 2.5 Cv capacity for stable temperature regulation in mixing configurations.
- Durable Construction: The forged brass body and brass trim provide long-term resistance against the rigors of hydronic medium types.
- Minimized Leakage: Meets ANSI Leakage Class IV standards (0.01% of Cv) to prevent energy loss and maintain system integrity.
Common Questions:
What actuators are compatible with the Siemens 599-02068?
This valve is specifically designed for use with Siemens MT Series actuators (like the SFA, SFP, SSA, or SSP series) that provide a 7/32-inch (5.5 mm) stroke and at least 67 lbf (300 N) of force.
Can this 3-way valve be used for diverting applications?
No, the 599-02068 is a mixing valve, meaning it is designed with two inlets and one outlet. For diverting applications, a specific diverting valve body must be used to ensure proper flow dynamics.
What is the maximum glycol concentration allowed for this valve body?
The valve is compatible with water and antifreeze solutions (glycol) up to a 50% concentration, as long as the medium temperature remains within the 35°F to 250°F operating range.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
