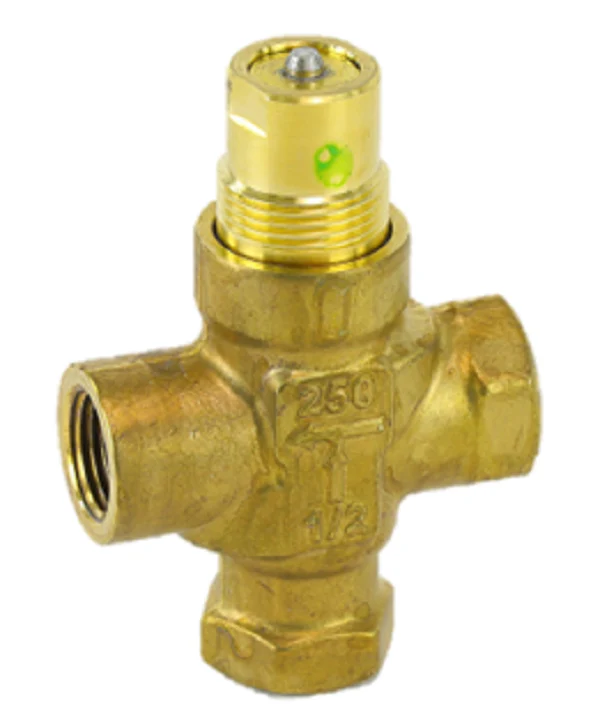

Siemens Building Technology 599-02066 Valve
The Siemens 599-02066 is a rugged 3-way mixing valve from the Powermite 599 MT Series, engineered for precise temperature control in demanding terminal unit applications. This 1/2 inch NPT globe valve features a forged brass body and brass trim, rated at ANSI Class 250 to ensure high-pressure integrity in hydronic systems. With a 1.0 Cv flow coefficient and a linear flow characteristic, it provides the incremental control required for fan coils, reheat coils, and baseboard radiation units. The direct-coupled universal bonnet allows for seamless integration with MT Series electronic actuators (such as SAS series) or pneumatic actuators with a 7/32" stroke, eliminating the need for specialized tools during Field installation. This assembly is designed to handle water and glycol solutions up to 50% concentrations, maintaining a tight ANSI Class IV leakage rating to maximize system efficiency. For veterans in the field, the metal-to-metal seat design and 100:1 rangeability ensure consistent performance across seasonal load variations without frequent recalibration.
Key Benefits for the Contractor
- Direct-Coupled Installation: The universal bonnet design allows you to mount Siemens 599-02066 actuators by hand, significantly reducing labor time on the job site.
- Compact Footprint: Specifically designed for tight mechanical closets and terminal unit cabinets where space for NPT piping is limited.
- Broad Compatibility: Works natively with a wide range of Siemens Powermite MT pneumatic and electronic actuators, streamlining your truck stock requirements.
- Durable Construction: The forged brass body provides excellent corrosion resistance and mechanical strength for long-term service in closed-loop systems.
Common Questions from the Field
Can this valve be used for diverting service?
This specific model is engineered as a 3-way mixing valve. For diverting applications, ensure the piping configuration and flow direction match the markings on the valve body to avoid slamming or premature seat wear.
What actuators are compatible with the 599-02066?
It is compatible with any Siemens MT Series actuator providing a 5.5mm (7/32 inch) stroke and a minimum of 67 lbf (300 N) of force, including the SAS61, SAS81, and SQS series.
Is this suitable for low-pressure steam?
The 599-02066 features brass trim; for steam applications up to 15 psi, it is generally recommended to use the 599-02074 model which features stainless steel trim for better erosion resistance.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
