Siemens Building Technology 599-02063 Valve

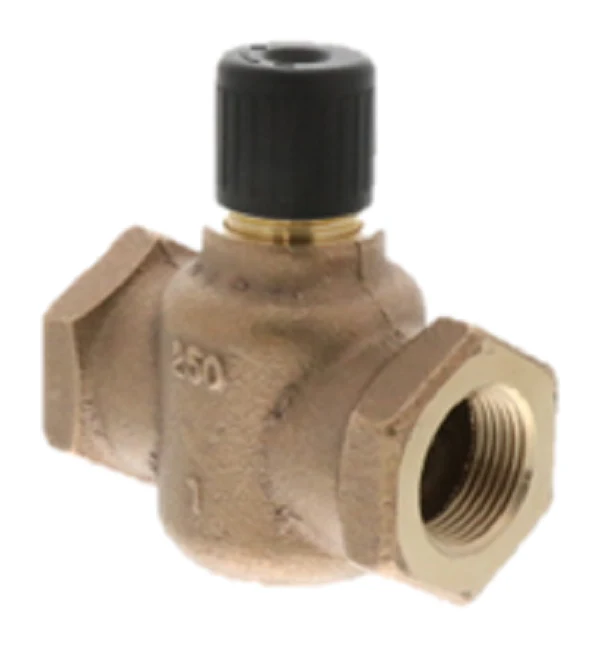

The Siemens 599-02063 is a heavy-duty 1-inch NPT globe valve engineered specifically for technical HVACR applications requiring high-precision fluid control. Built with a forged brass body and a 10 Cv equal percentage flow characteristic, this 2-way normally open valve provides superior linear modulation for hot water, chilled water, and glycol solutions up to 50%. This specific model features stainless steel trim, making it suitable for low-pressure steam applications up to 15 psi and increasing its resistance to corrosive media in commercial terminal unit systems.
Designed for seamless integration into ANSI Class 250 systems, the 599-02063 utilizes a direct-coupled universal bonnet that allows for field installation of MT Series pneumatic or electronic actuators without specialized tools. The stainless steel stem and EPDM O-ring packing ensure a tight seal with an ANSI Leakage Class IV rating, maintaining system efficiency by preventing bypass leakage. Whether you are performing a retrofit or a new installation, this normally open control valve excels in modulating service with a rangeability exceeding 100:1, providing the granular control necessary for modern building automation requirements.
Key Benefits
- Modified Equal Percentage Flow: Provides optimized heat transfer and precise temperature control in hydronic systems.
- Stainless Steel Trim: Enhanced durability for 15 psi steam and aggressive chilled water environments.
- High Close-off Reliability: Rated for ANSI Class IV leakage (0.01% of Cv) to ensure energy conservation when the valve is positioned.
- Universal Compatibility: Works with both pneumatic (10-15 psi spring range) and electronic MT Series actuators.
- Compact Footprint: Standard 1" NPT female-to-female connections facilitate easy replacement in tight mechanical closets.
Common Questions
- Is the spring located in the valve or the actuator? For MT Series pneumatic valves, the fail-safe spring is integrated into the valve body itself.
- Can I use this valve for steam? Yes, the stainless steel trim specifically allows for saturated steam applications up to 15 psi.
- What is the maximum operating temperature? This unit is specified for media temperatures ranging from 35°F to 250°F.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
